12" x 36" CLAUSING VARI-SPEED ENGINE LATHE MODEL: 5914

Stock#: 4992

Request A Quote

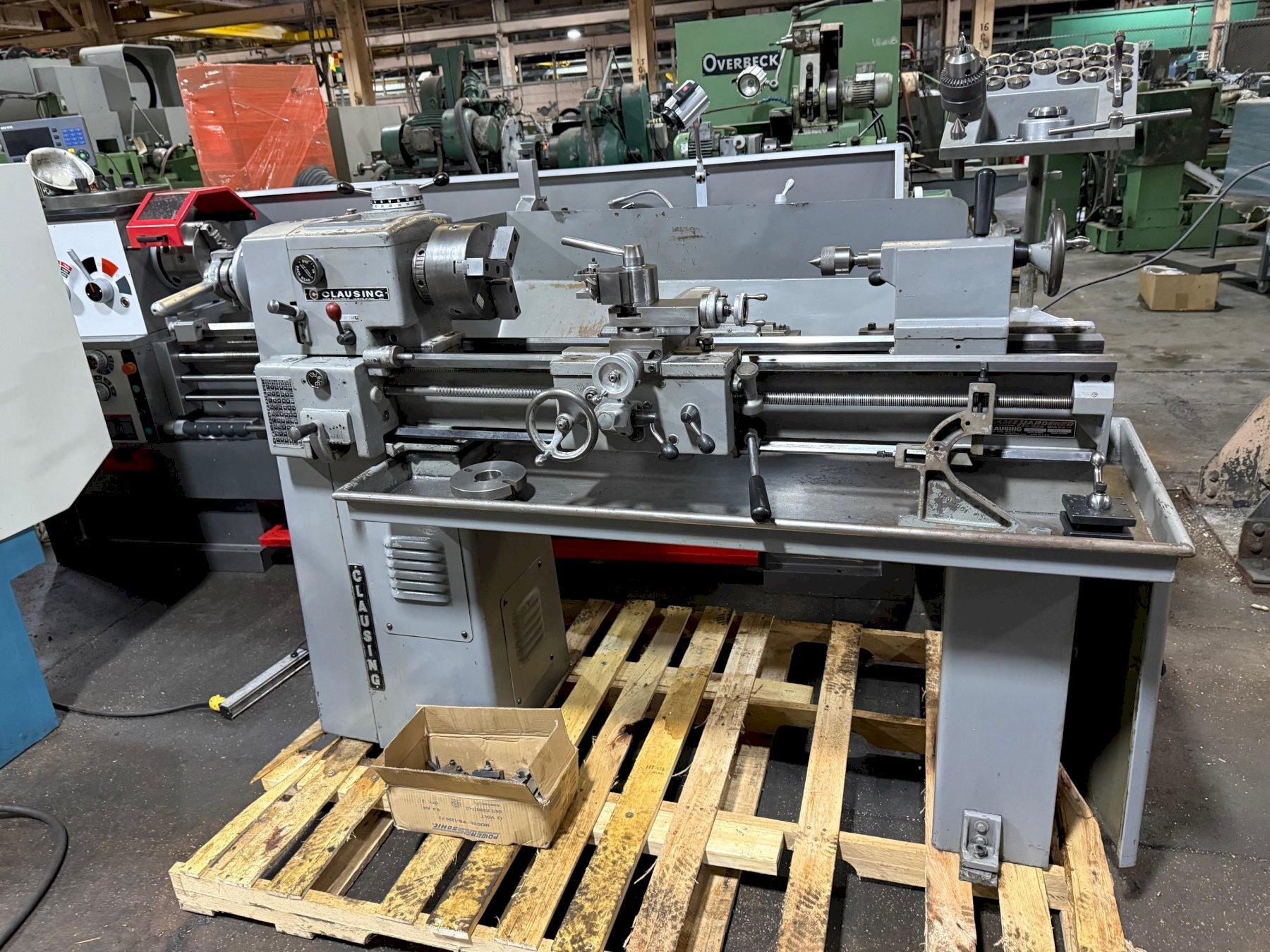

12" x 36" CLAUSING VARI-SPEED ENGINE LATHE

MODEL: 5914
MFG: 1965

SPECIFICATIONS:

SWING OVER BED ............... 12-1/4"

DISTANCE BETWEEN CENTERS ..... 36"

SWING OVER CARRIAGE .......... 7-1/4"

SPINDLE BORE ................. 1-3/8"

SPINDLE NOSE ................. L-00

SPINDLE SPEEDS INFINITELY VARIABLE:

BACK GEAR DRIVE ............ 52 - 280 RPM

DIRECT DRIVE ............... 360 - 2000 RPM

ENGLISH THREAD RANGE (54) .... 4 - 224 TPI

LONGITUDINAL FEED RANGE (54) . .00065" - .0367" PER REV

CROSS FEED RANGE (54) ........ .00032" - .0183" PER REV

TAILSTOCK TRAVEL ............. 2-7/8"

TAILSTOCK SPINDLE TAPER ...... #3 MT

OVERALL DIMENSIONS ........... 72" x 29" x 50"

APPROX WEIGHT ................ 1,100 LBS

EQUIPPED WITH:

3-JAW CHUCK

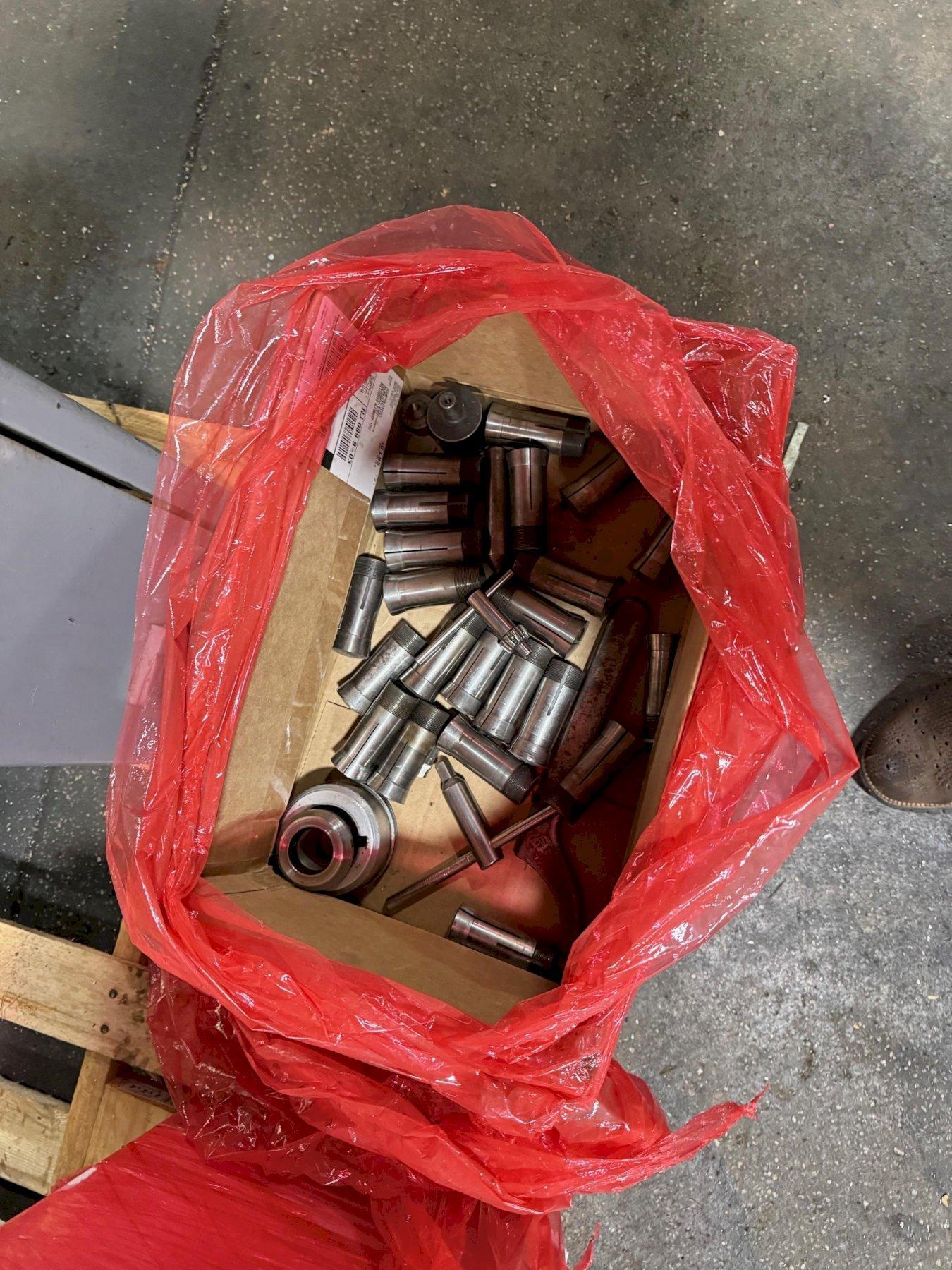

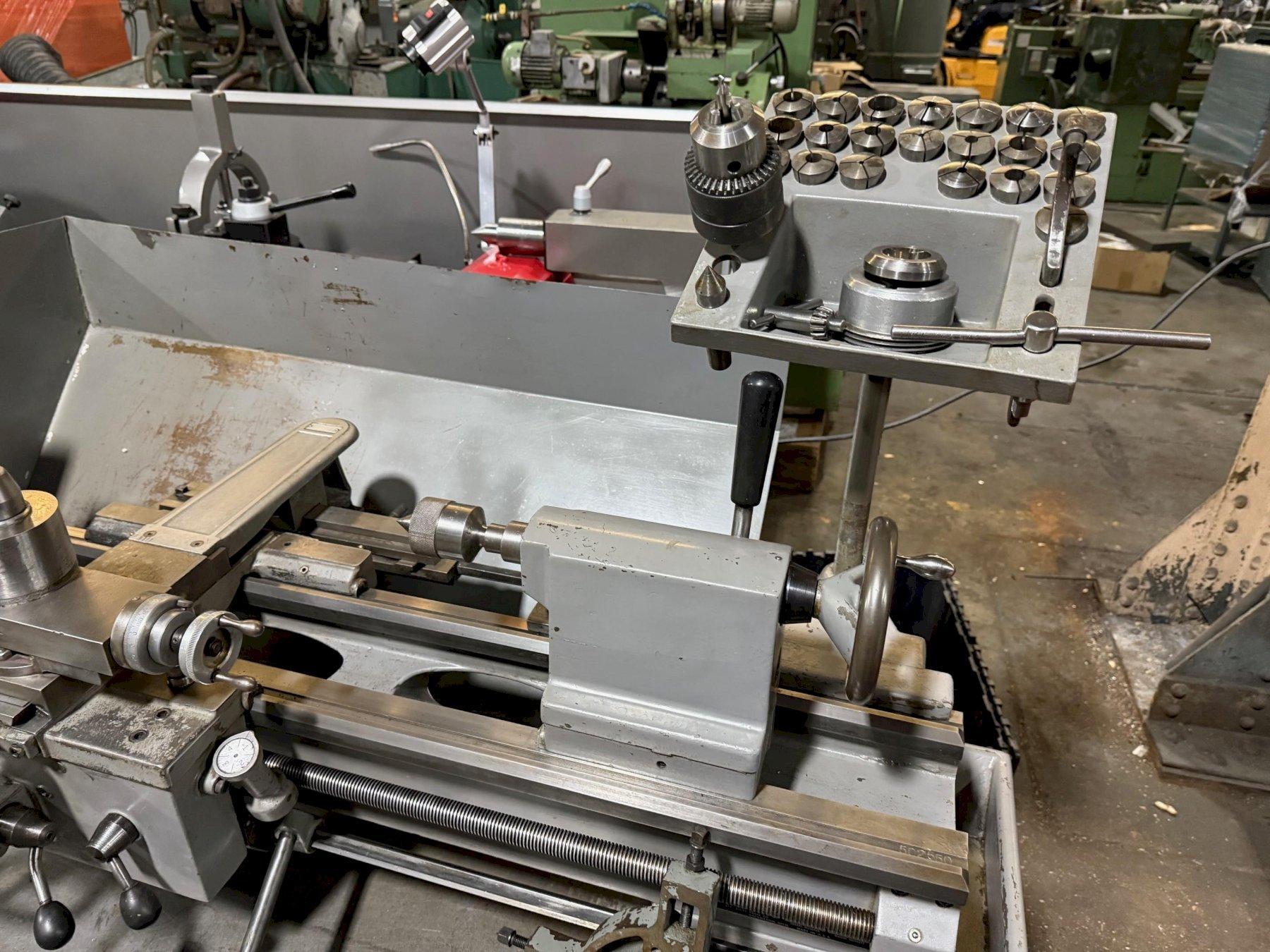

LEVER TYPE 5-C COLLET CLOSER

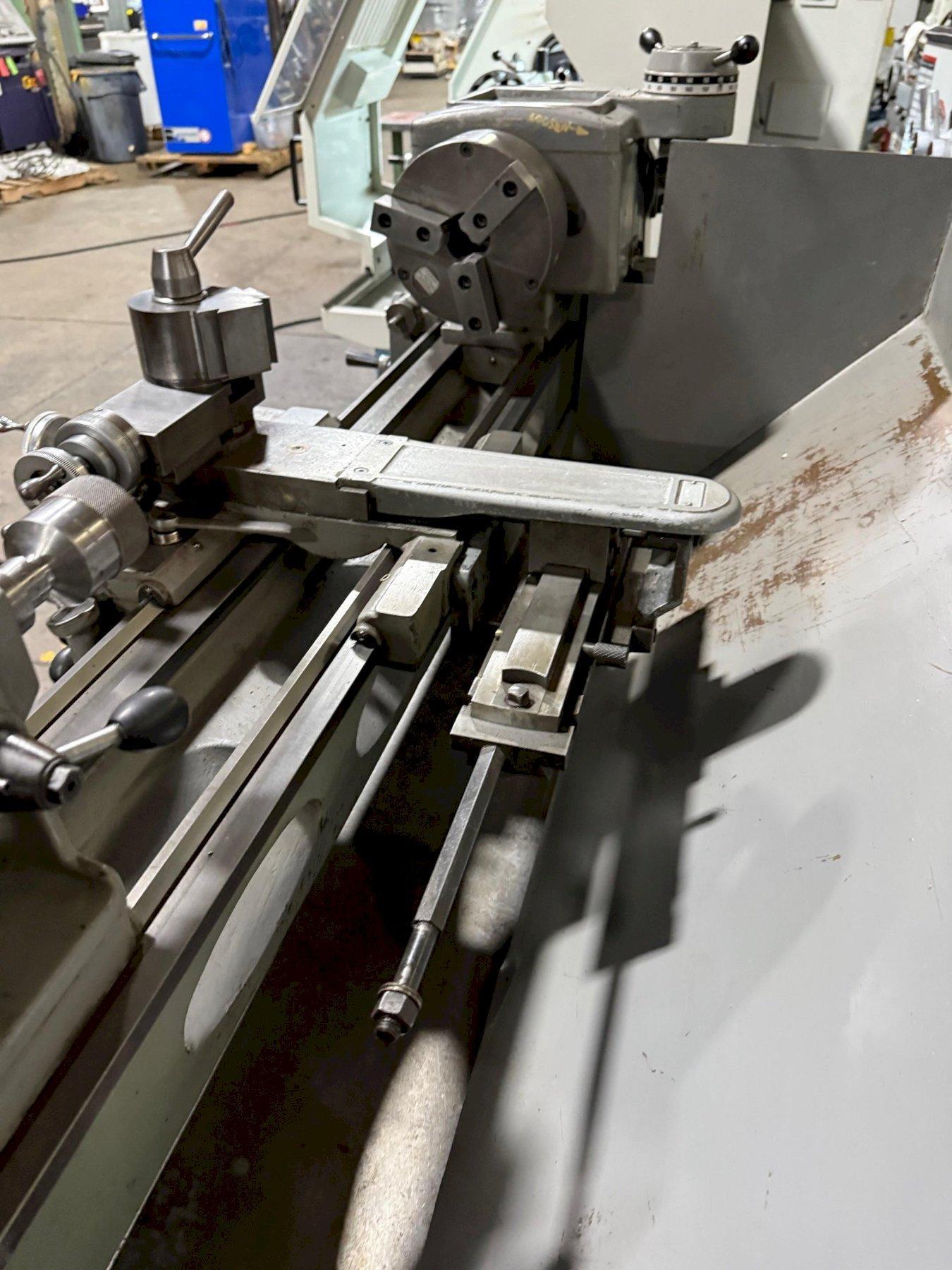

TAPER TUNING ATTACHMENT

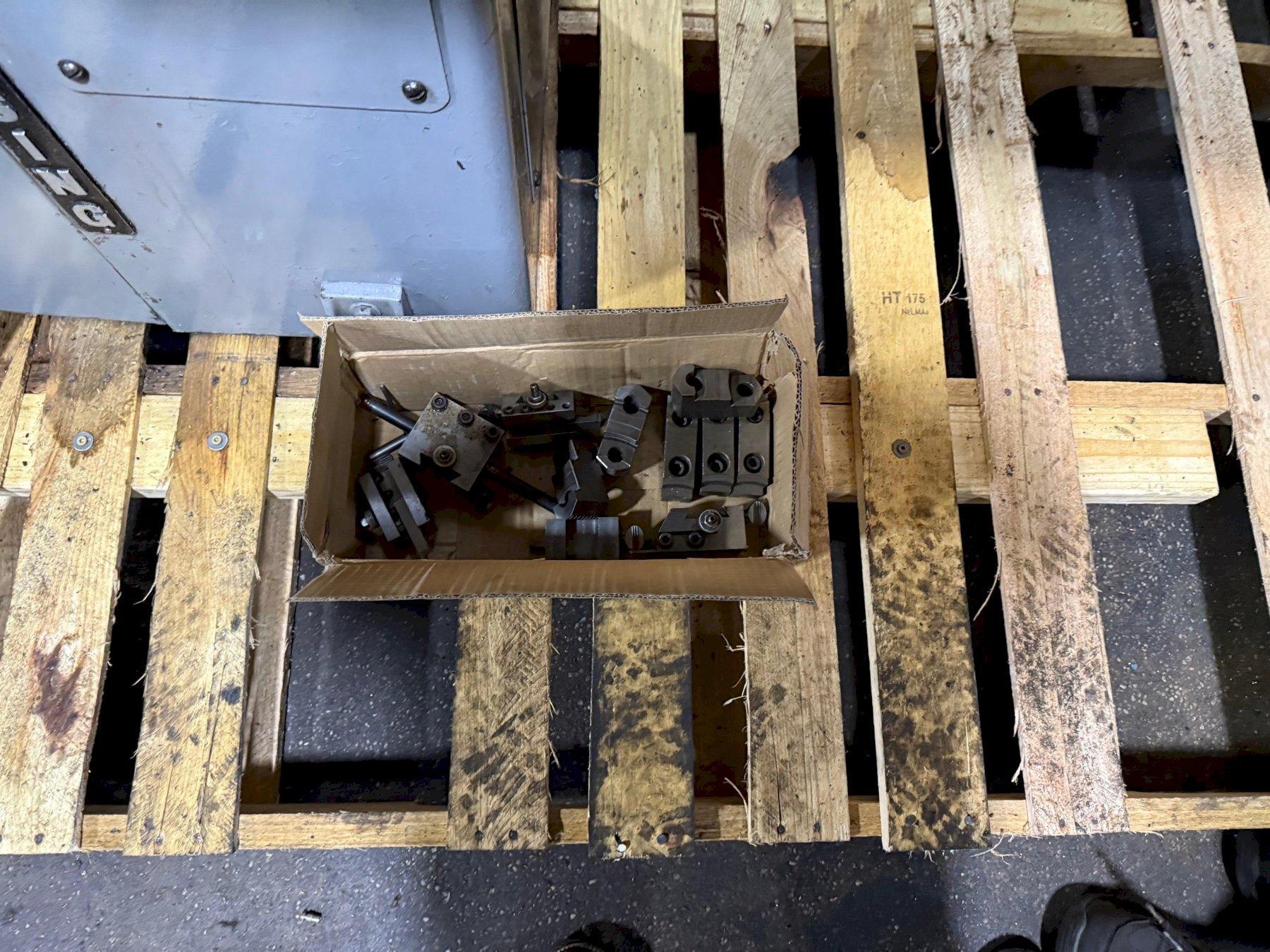

QUICK CHANGE TOOLPOST w/HOLDERS

FOLLOW REST

2 HORSE POWER MAIN MOTOR

FOB: ORIGIN
