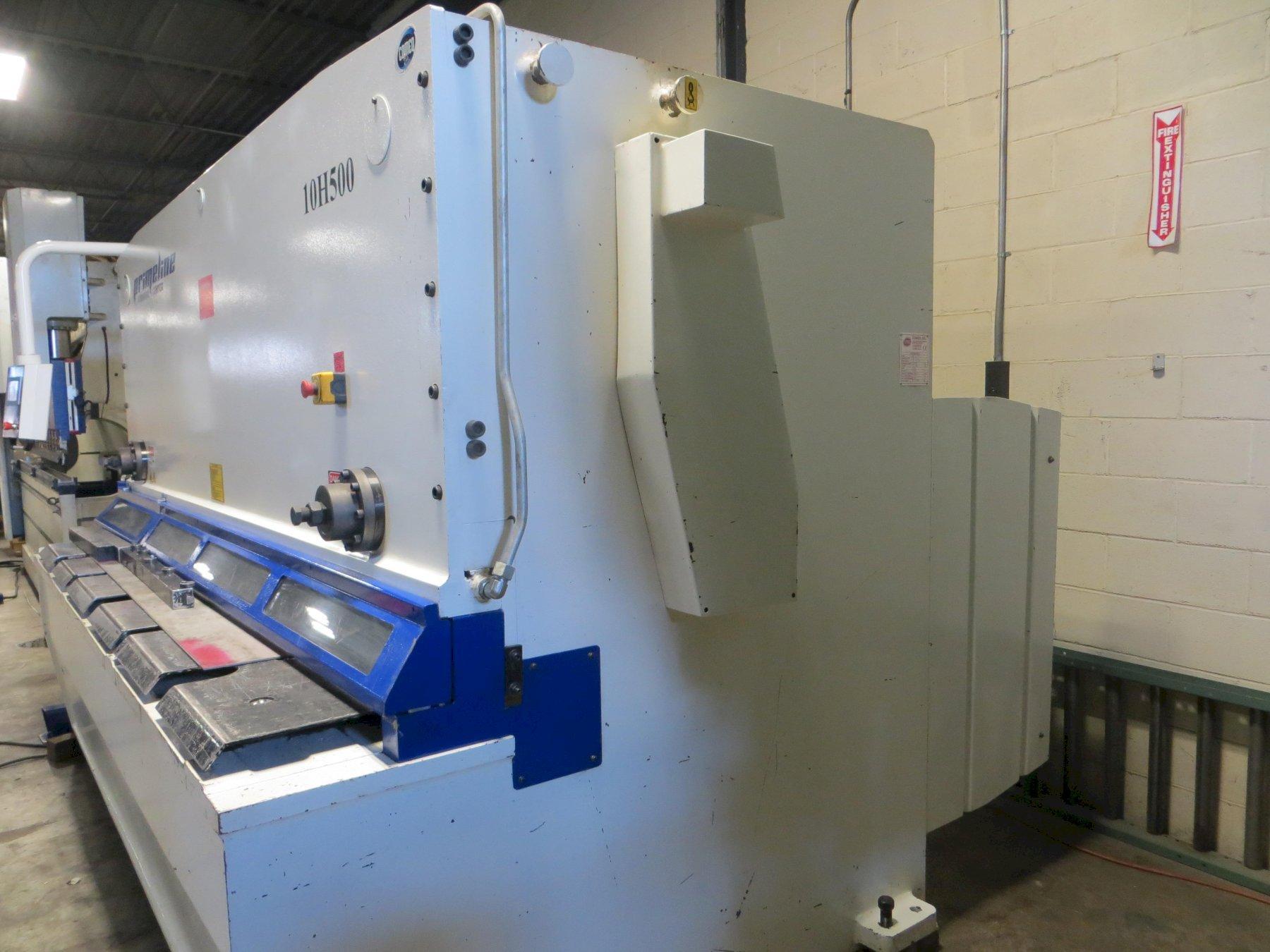

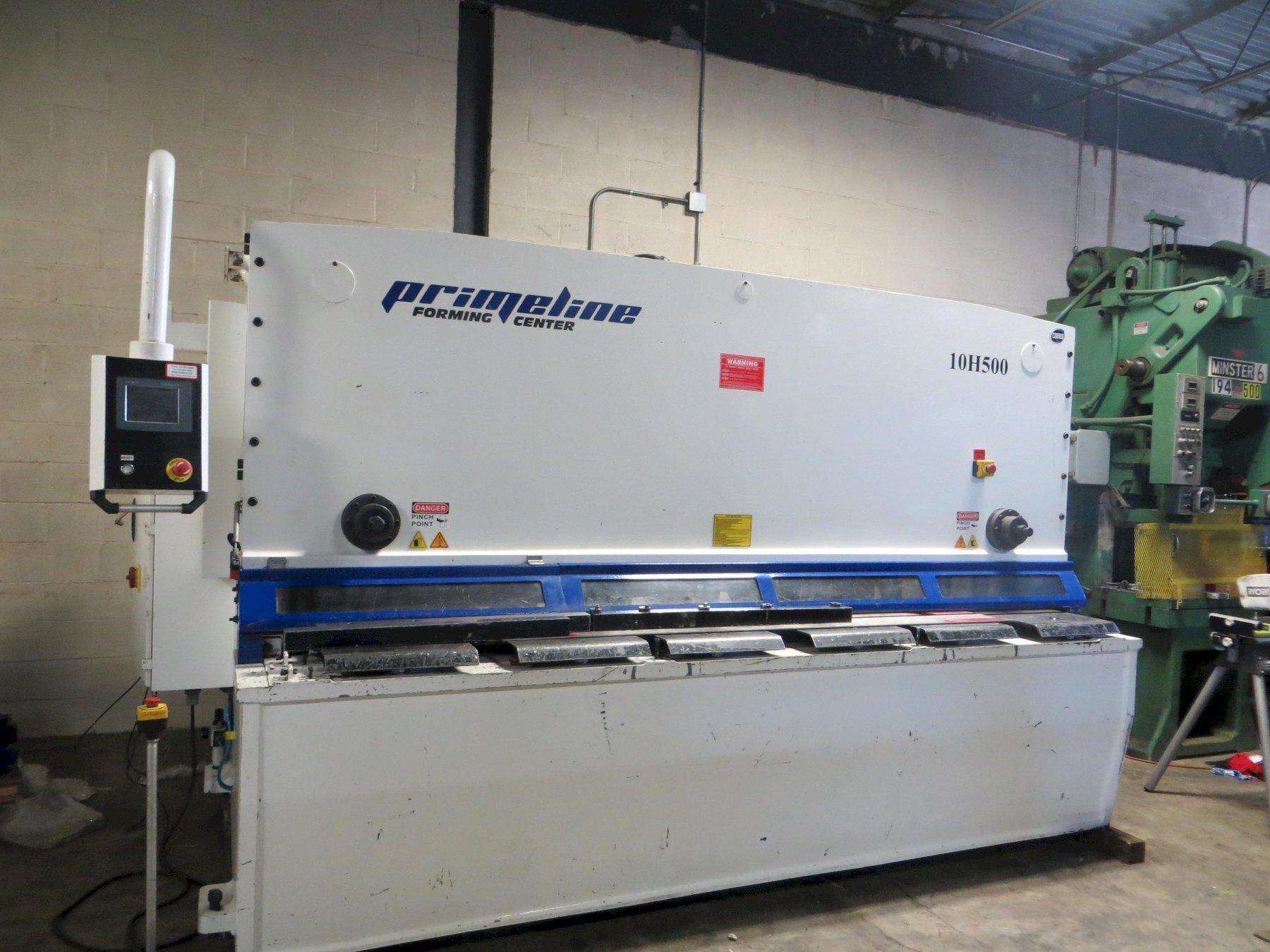

1/2" x 10 ft. Used Primeline Hydraulic Shear Model 10H500
Stock#: 4942
Category Shears, Power Squaring (In)
Request A QuoteUsed Primeline Hydraulic Shear w/ CNC Back Gauge and Blade Gap Control, Pneumatic Thin Sheet Support

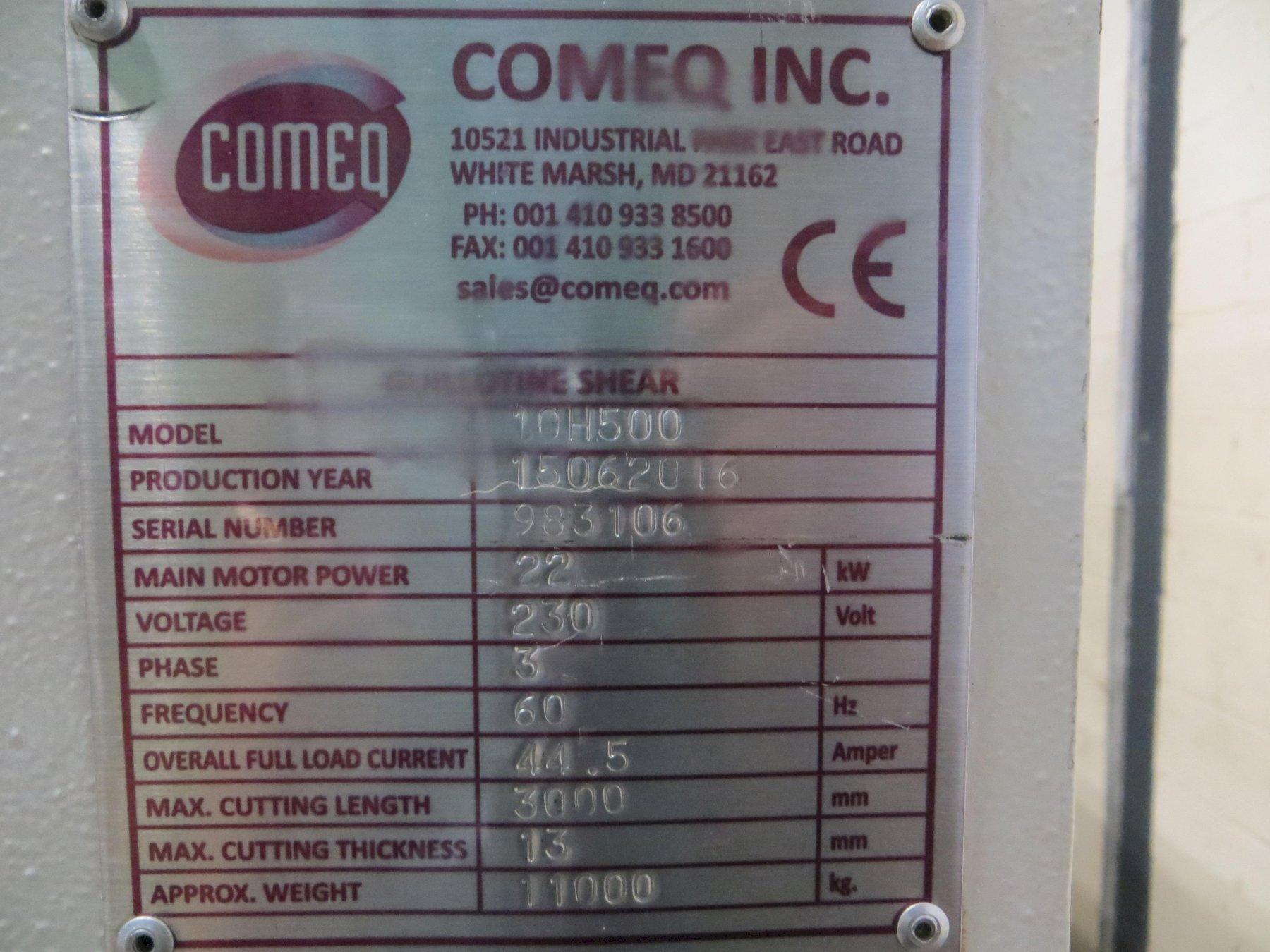

Model 10H500
10 ft x 1/2" Mild Steel
New 2016
SPECIFICATIONS:
Capacity - mild steel up to 80000 PSI with yield
strengths at or below 50% of tensile strength for maximum
capacity shown - 10' x 1/2"
Capacity - mild stainless steel - 10' x 5/16"
Cutting Length - 122"
Throat depth (gap) - 9.84"
Rake angle of upper blade - 2 degrees
Strokes per minute - full length at full capacity - 12
Strokes per minute - full length at 50% capacity - 17
Back gauge range - 39", swing-up type
Hydraulic holddowns - 14
Motor HP - 29
Overall Dimensions - (L x W x H) 176" x 125" x 95"
Approximate weight - 24,200#
FEATURES:
Swing-beam design with streamline appearance
All steel frame, featuring box-type welded construction of the
main frame and blade beam, with dimensions optimized
by computer-assisted design to guarantee maximum rigidity
Accurate upper blade beam guiding system
Swivel-mounted hydraulic cylinders for maximum durability.
Hydraulic unit located for convenient and easy access

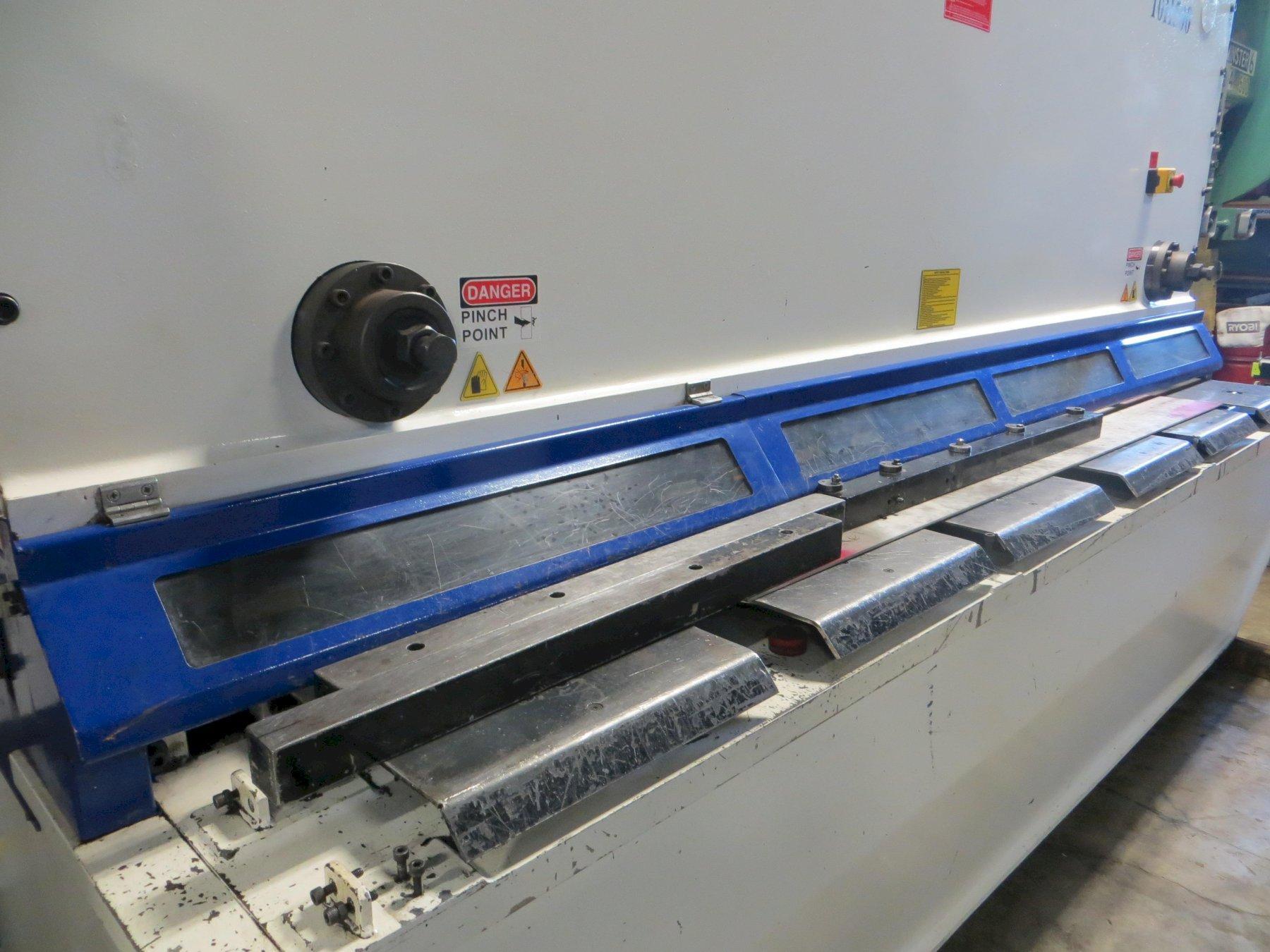

High-pressure hydraulic hold downs
Low rake-angle of upper blade (minimizing distortion of narrow
cut-offs)
Rapid, single-point blade-clearance (blade-gap) adjustment device
Easy blade re-setting
Slow-stroking device (inching) to check blade clearance
Easy adjustment of cutting length for shortening stroke when
desirable for cutting narrow materials. When the stroke is
shortened, the number of strokes per minute increases
proportionately.
Deep gap (throat) to allow shearing of plates longer than the length
of the blades, using slitting technique
Double-acting cylinders for return of blade beam
Ball transfers in machine table
Little maintenance required as there are very few moving parts,
the main ones being self-lubricated
Rear bottom side of shear completely open for addition of stacking
and conveying devices
Light beam shearing gauge
Jack bolts in machine frame for blade adjustment after sharpening,
eliminating the need for shims
Low voltage at the controls
FOB: Ronkonkoma, NY
Low voltage at the controls
Standard equipment:
The complete hydraulic system with motor and controls

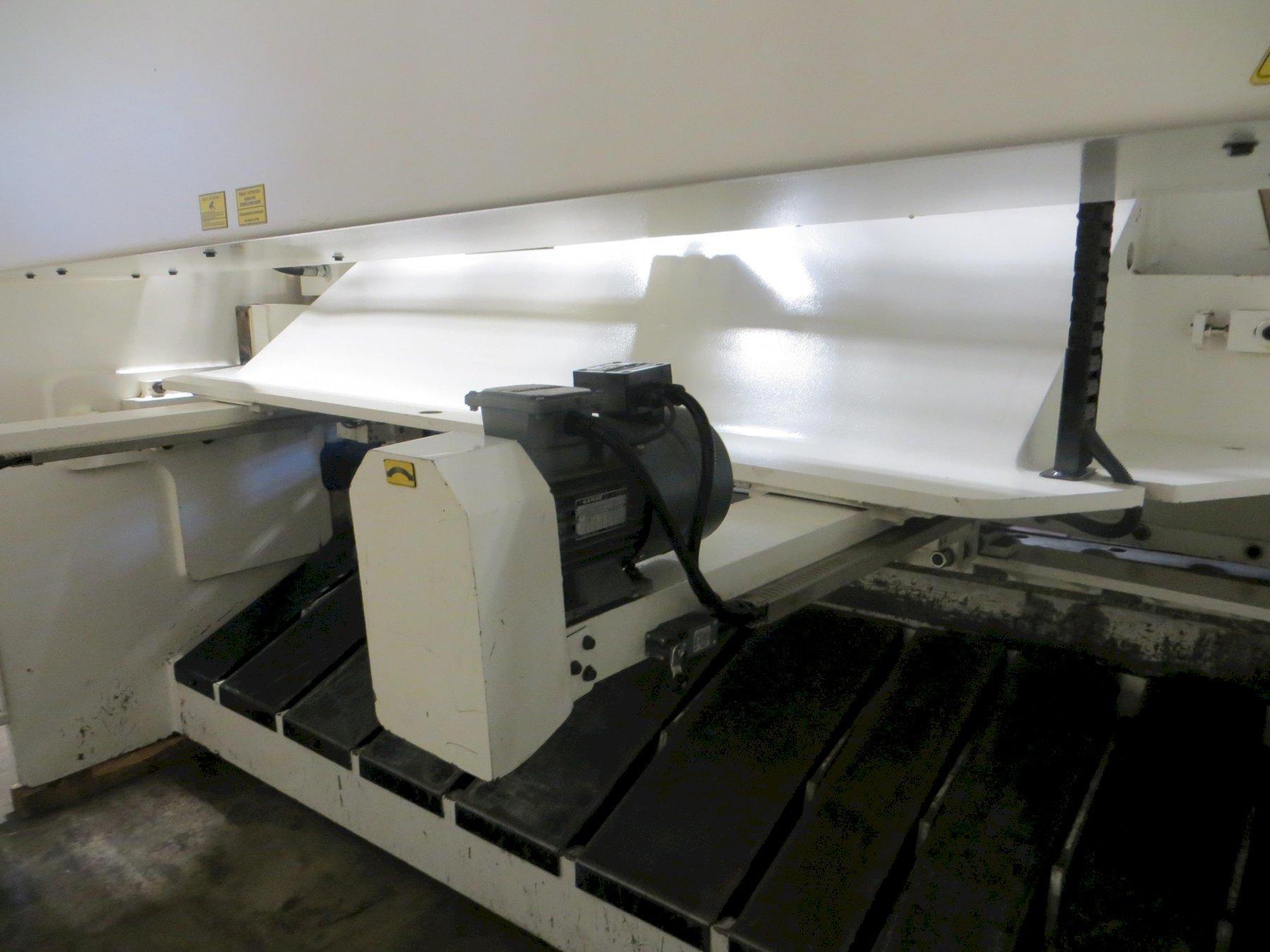

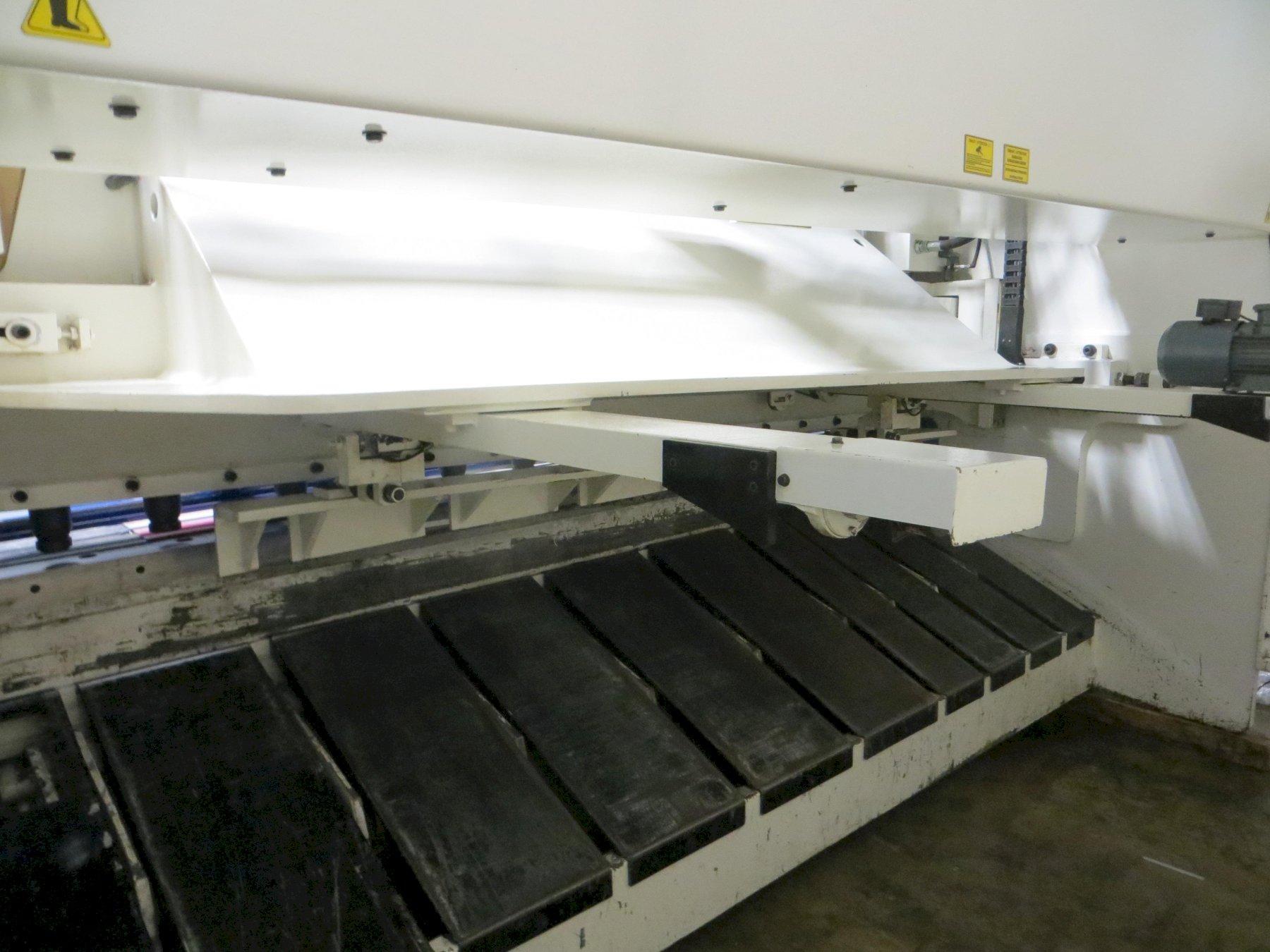

Goto Back Gauge, 39" Range - Swing Up Type
Goto Back Gauge, 39" Range - Swing Up Type

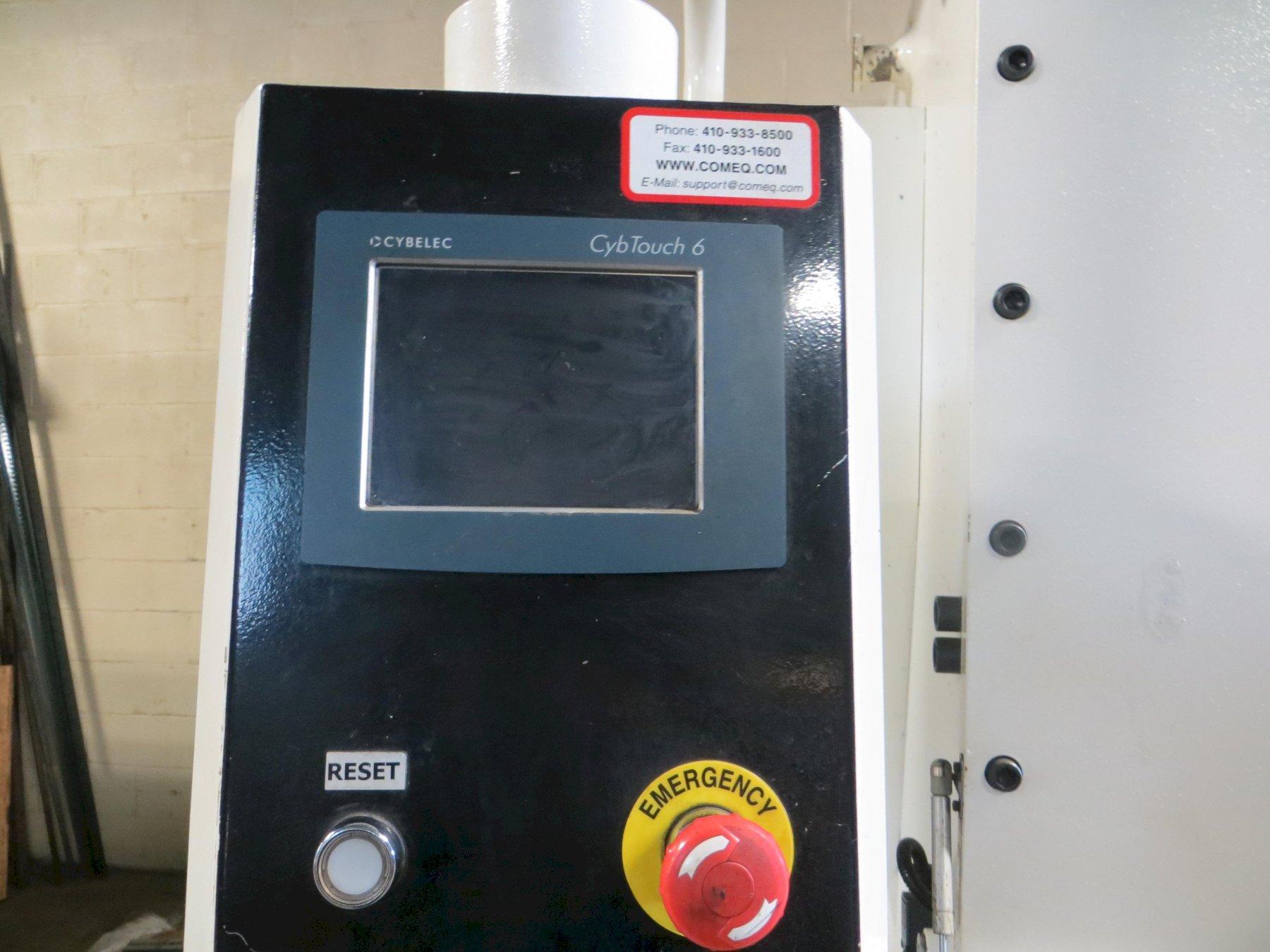

Elgo "touch" control for go-to and sequential programming
Rapid, single-point blade-clearance (blade-gap) adjustment device
Special shock-resistant blades (59-60 HRC) suitable for cutting
quantities of mild steel and stainless steel to the indicated capacities
Hydraulic fluid
Finger guard
Left-hand squaring arm, 40", with scale in inches, fitted with two
squaring guides and one retractable stop
2 Support arms with scale and flip stops
Light-beam shearing gauge
Hydraulic pump with three-year replacement warranty
Electrics for 3/60/220 or 3/60/440. Low voltage at the controls.

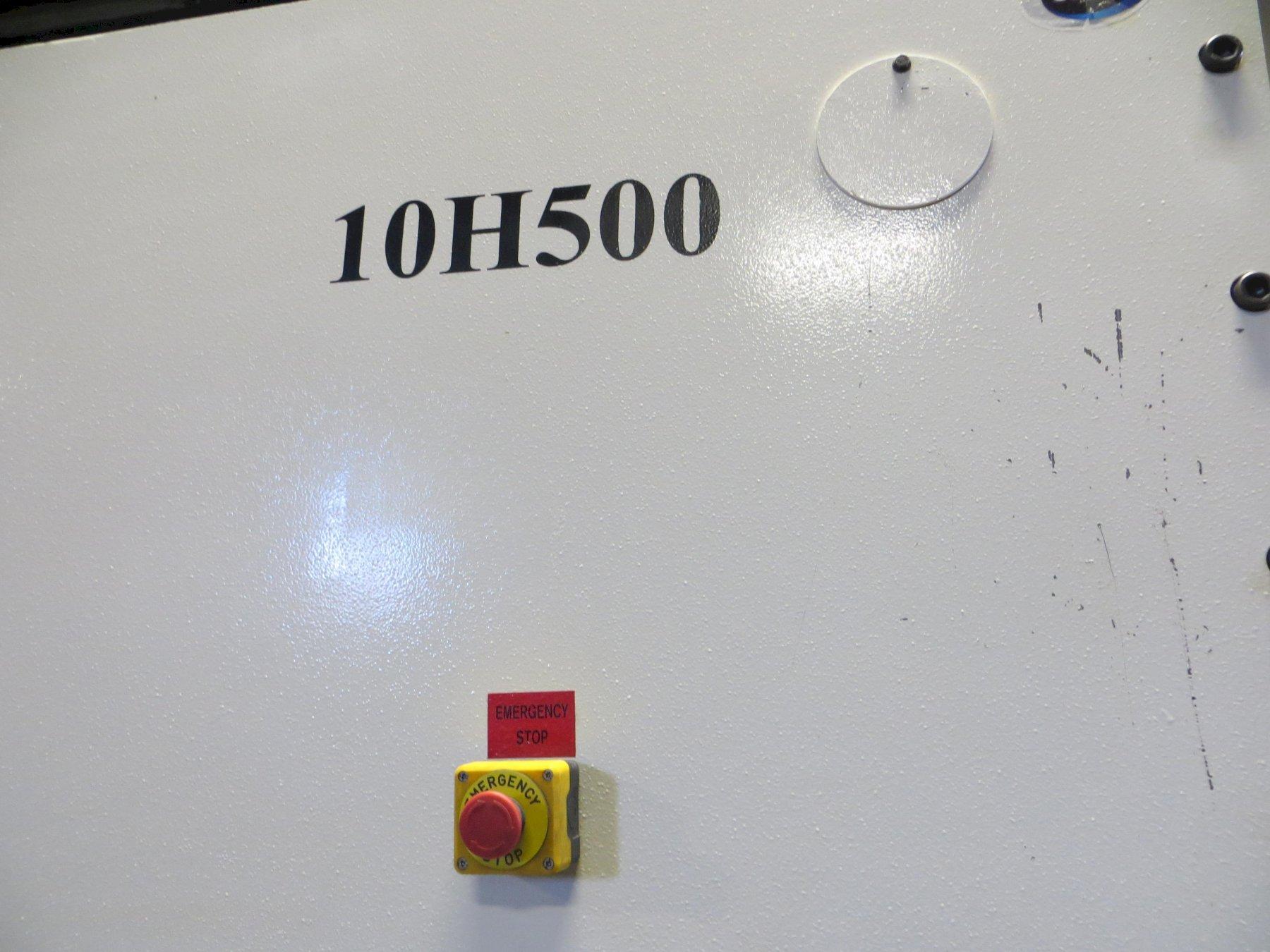

Key-lock switch for On/Off for the power supply. Emergency
stop palm button.

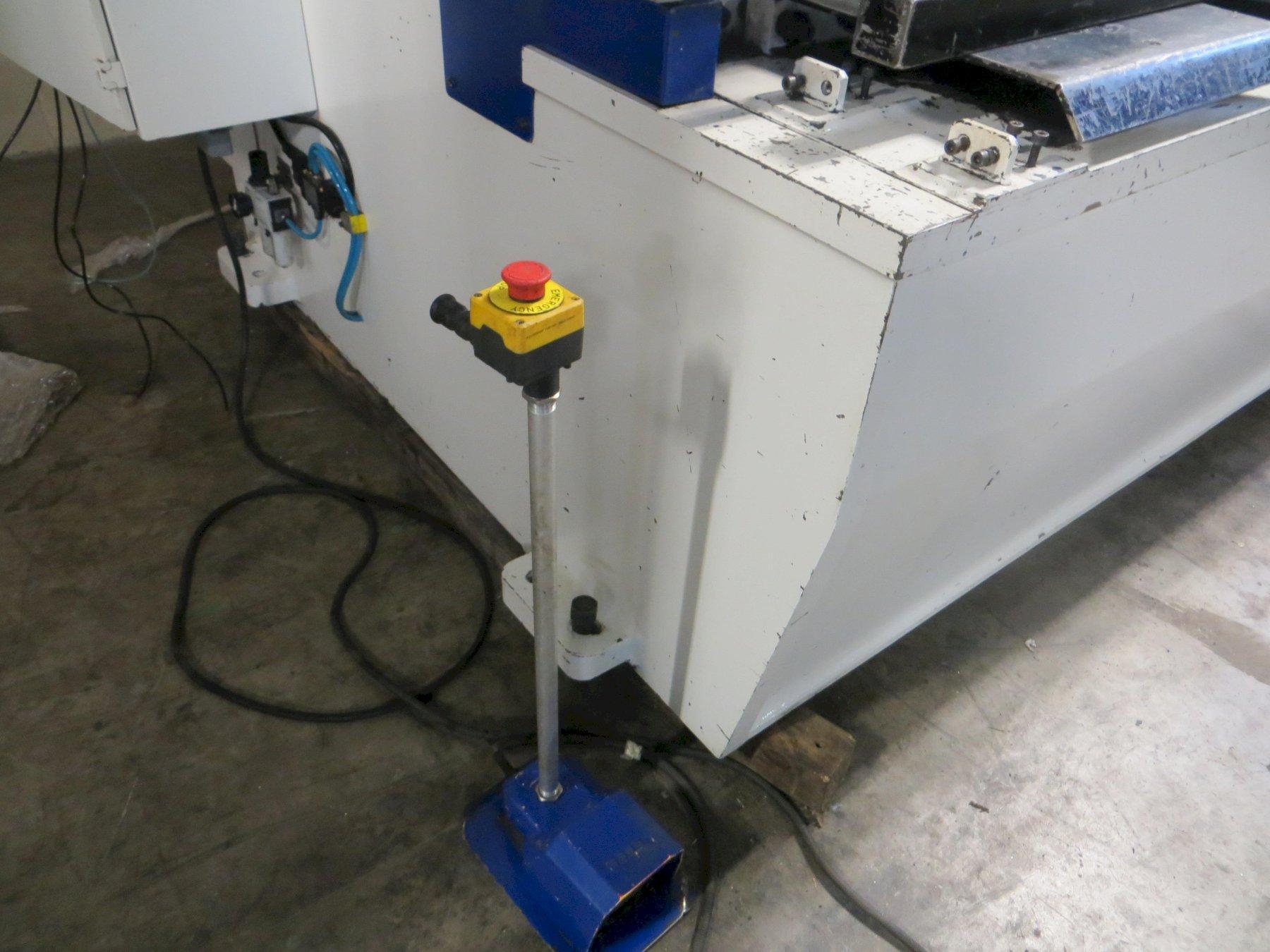

Electric foot switch on a trailing lead
Operating manual, maintenance tools
FOB: Ronkonkoma, NY
