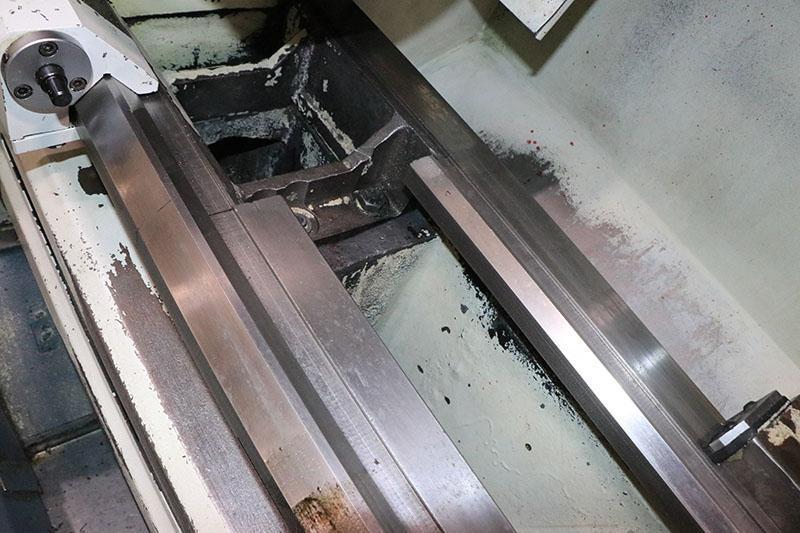

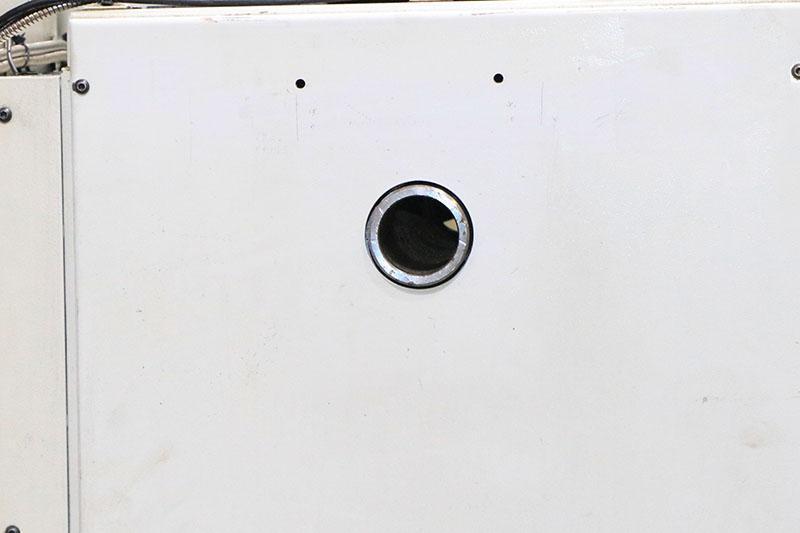

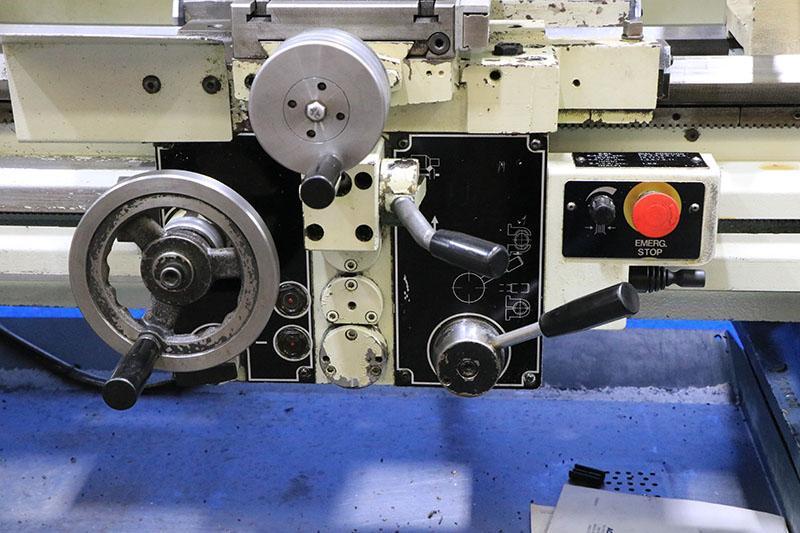

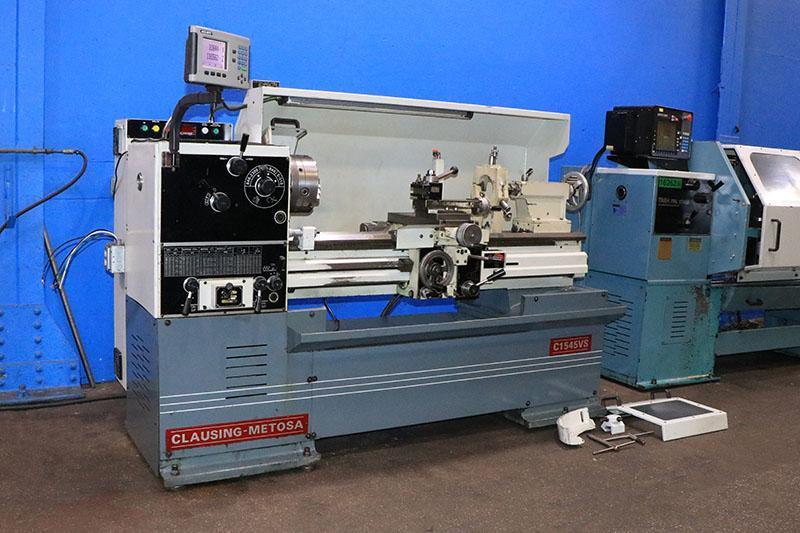

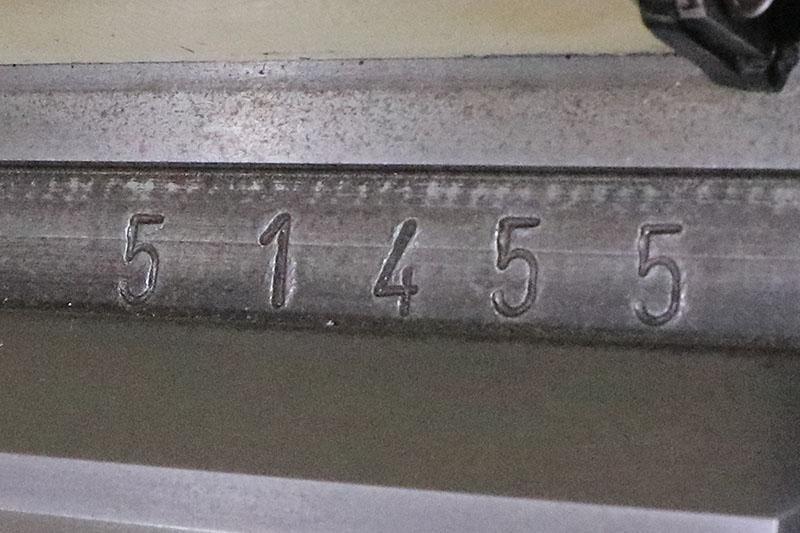

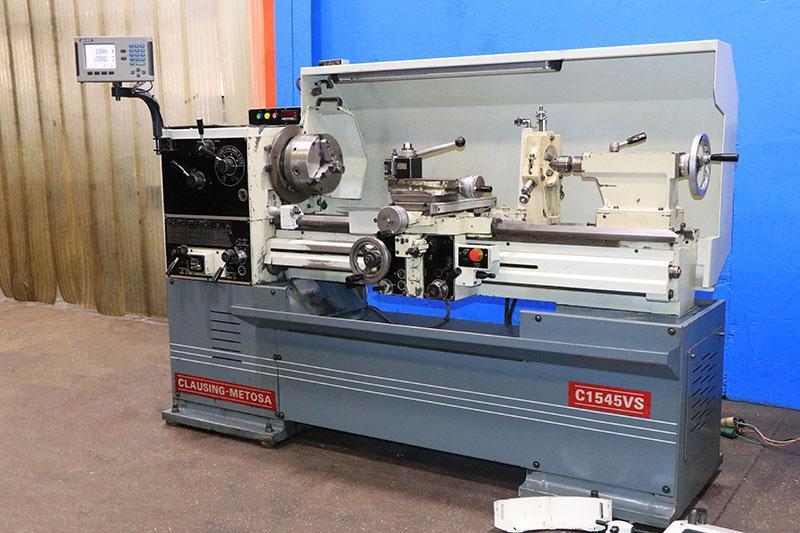

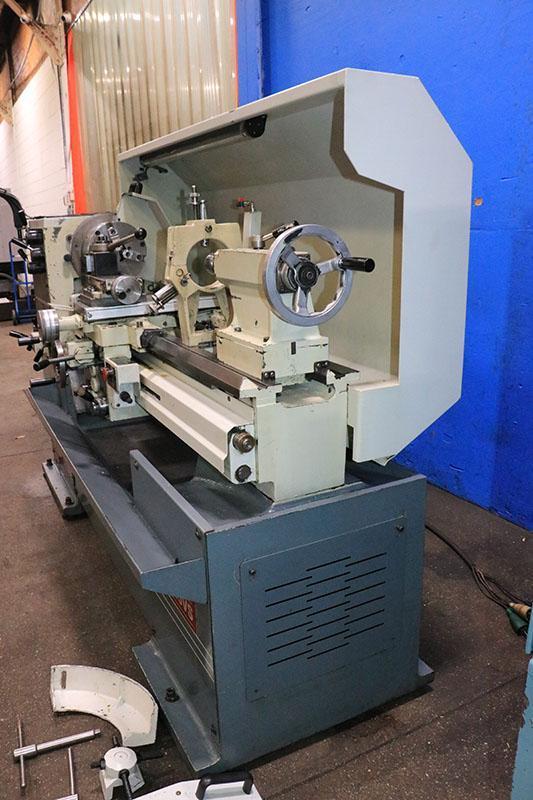

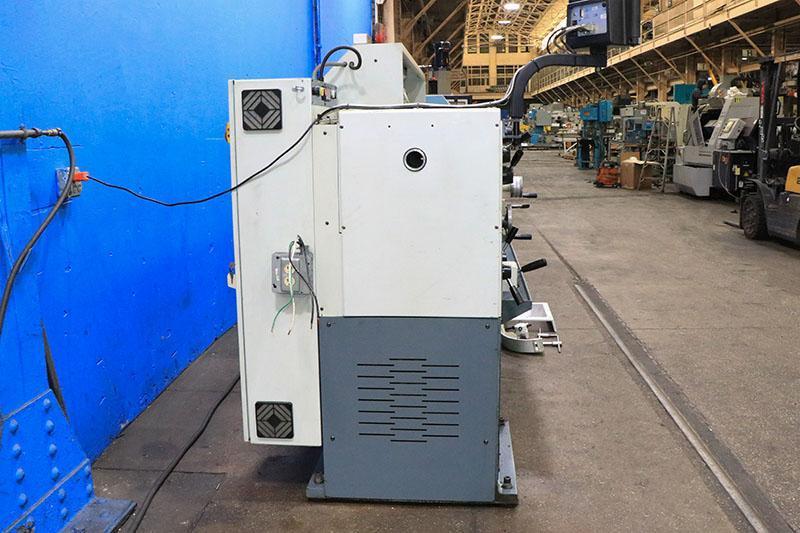

15"/23.6" X 45" CLAUSING-METOSA GAP BED ENGINE LATHE, MODEL C1545VS
Stock#: 5020
Category Lathes, Gap Bed
Request A Quote15"/23.6" X 45" CLAUSING-METOSA GAP BED ENGINE LATHE
MODEL: C1545VS
NEW: 2006
NEW: 2006
SPECIFICATIONS:
SWING OVER BED ....................... 15.75"
SWING INSIDE REMOVABLE GAP ........... 23.62"
SWING OVER CROSS SLIDE ............... 8.26"
SWING OVER CARRIAGE WINGS ............ 14.57"
DISTANCE BETWEEN CENTERS ............. 45"
SPINDLE BORE ......................... 2.05"
SPINDLE NOSE ......................... D1-6"
SPINDLE TAPER ........................ #4 MORSE
WIDTH OF BED ......................... 12"
SPINDLE SPEED VARIABLE (3 RANGES) .... 0 - 2300 RPM
LONGITUDINAL FEED RANGE (44) ......... 0.0018 - 0.0264 IPR
CROSS FEED RANGE (44) ................ 0.0005 - 0.0076 IPR
THREADING RANGE ENGLISH (44) ......... 4 - 60 TPI
THREADING RANGE METRIC (44) .......... .5 - 7.5 MM
TAILSTOCK SPINDLE TRAVEL ............. 6"
TAILSTOCK SPINDLE TAPER .............. #4 MORSE
APPROXIMATE DIMENSIONS ............... 90"L x 40"W x 54"H
APPROXIMATE WEIGHT ................... 3,450 LBS
EQUIPPED WITH:

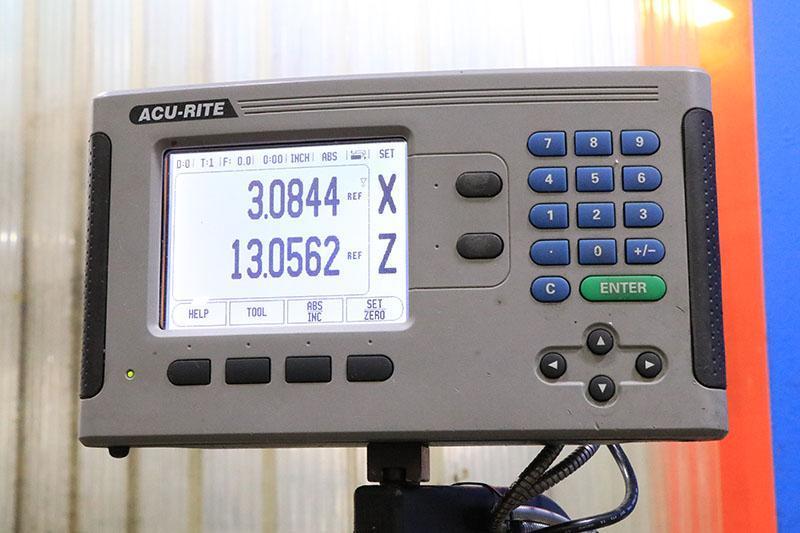

- ACU-RITE TWO AXIS DIGITAL READOUT

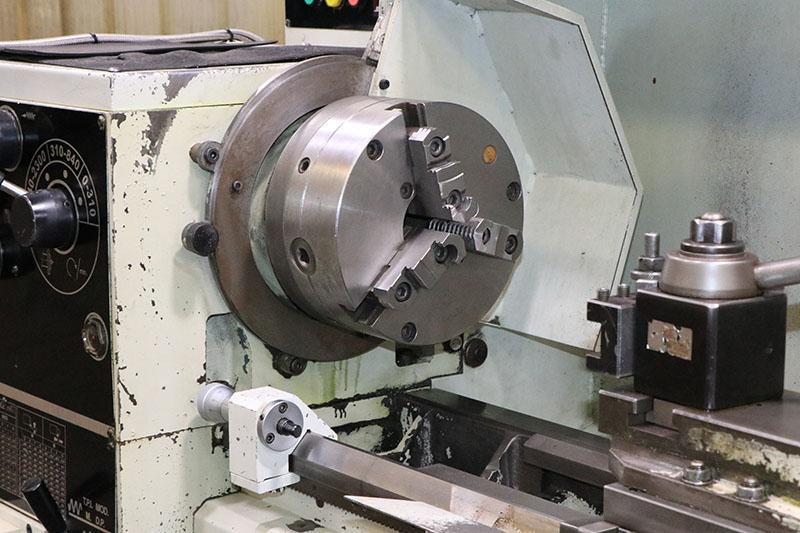

- 10-1/2" 3-JAW SET-TRU CHUCK

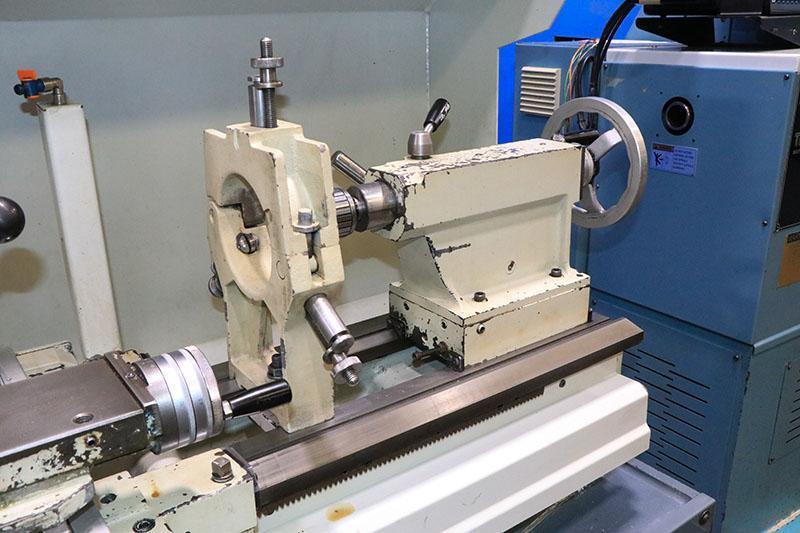

- STEADY REST

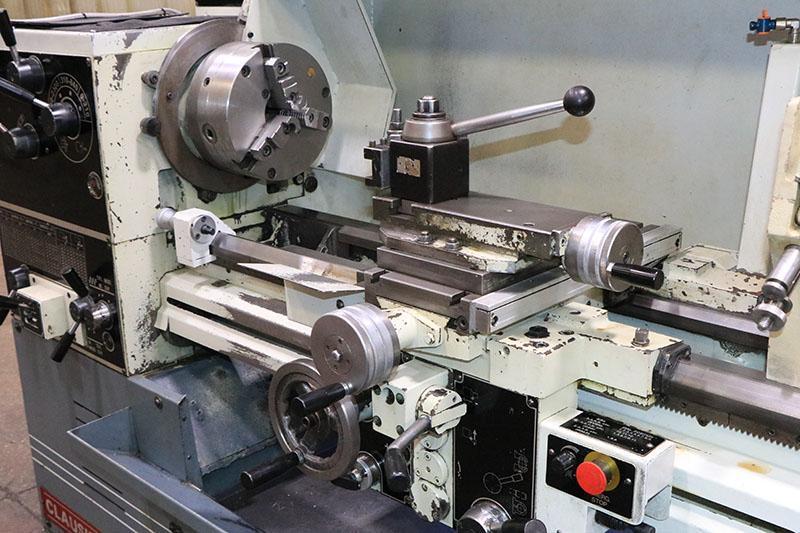

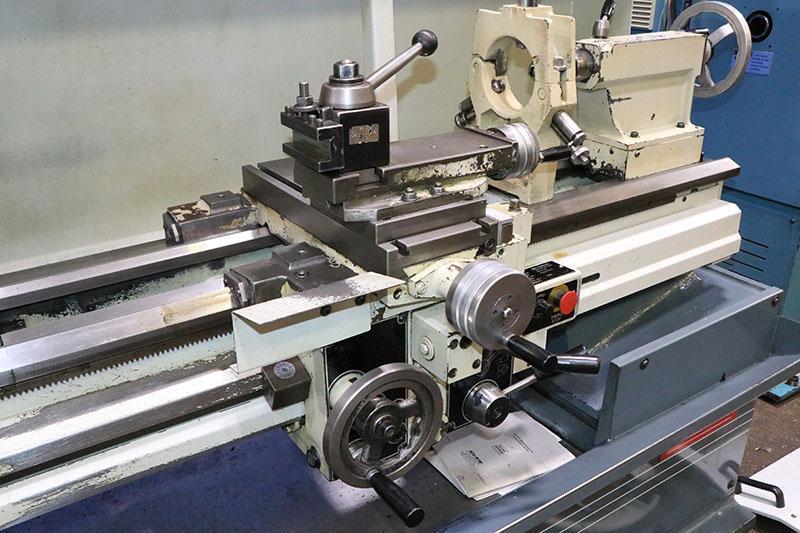

- ALORIS QUICK CHANGE TOOLPOST w/HOLDERS
- JACOBS DRILL CHUCK
- MICROMETER CARRIAGE STOP
- FOUR-POSITION BED STOP

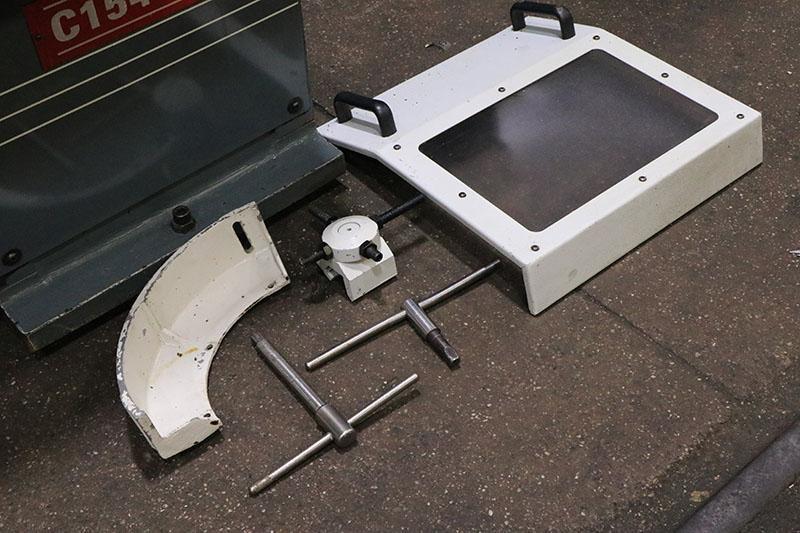

- FULL LENGTH BACK SPLASH GUARD

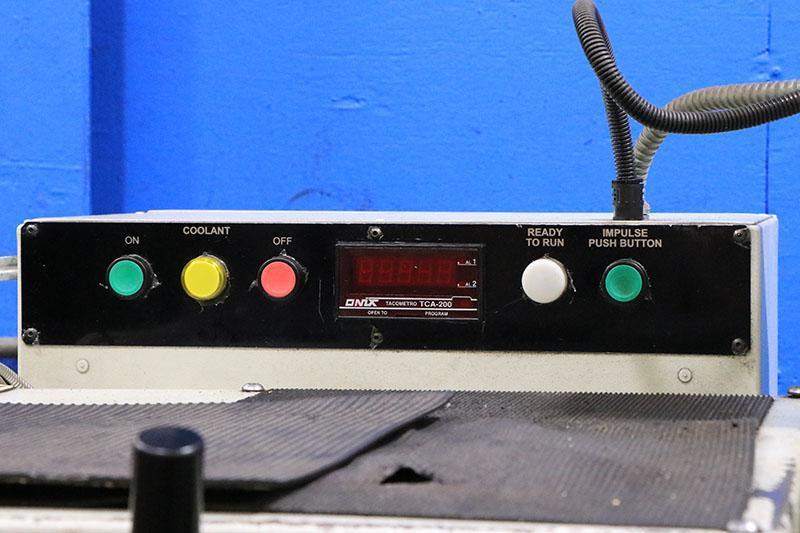

- COOLANT PUMP AND TANK
- 7.5 HORSE-POWER MAIN MOTOR
FOB: ORIGIN
FOB: ORIGIN
