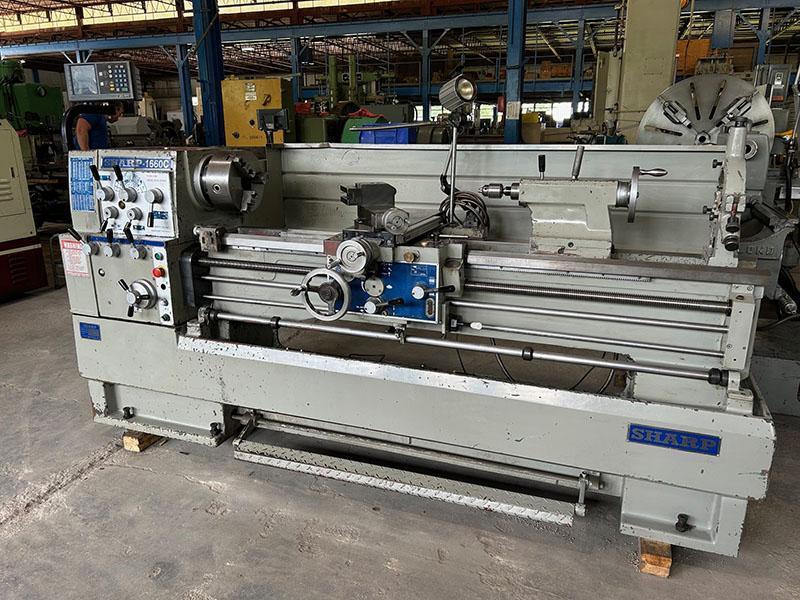

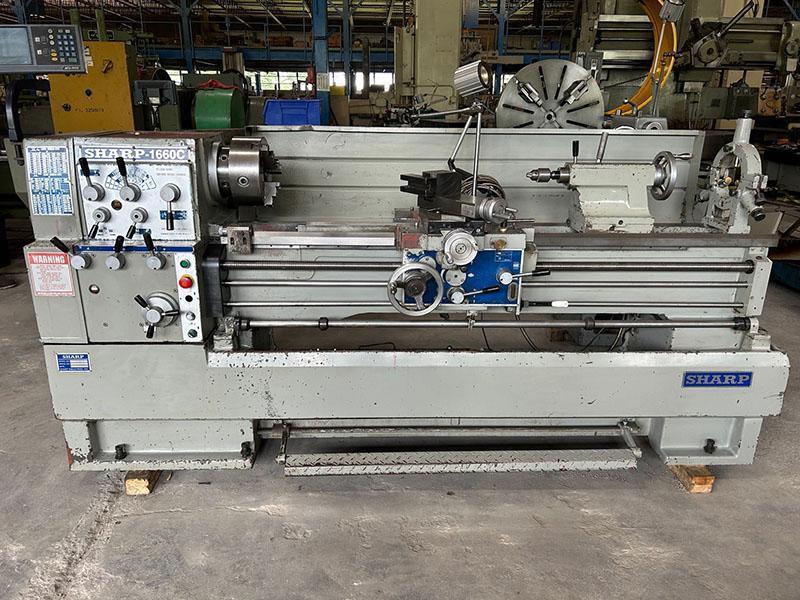

16"/24" x 60" SHARP Gap Bed Engine Lathe, Model: 1660C

Stock#: 4969

Request A Quote

16"/24" x 60" SHARP GAP BED ENGINE LATHE

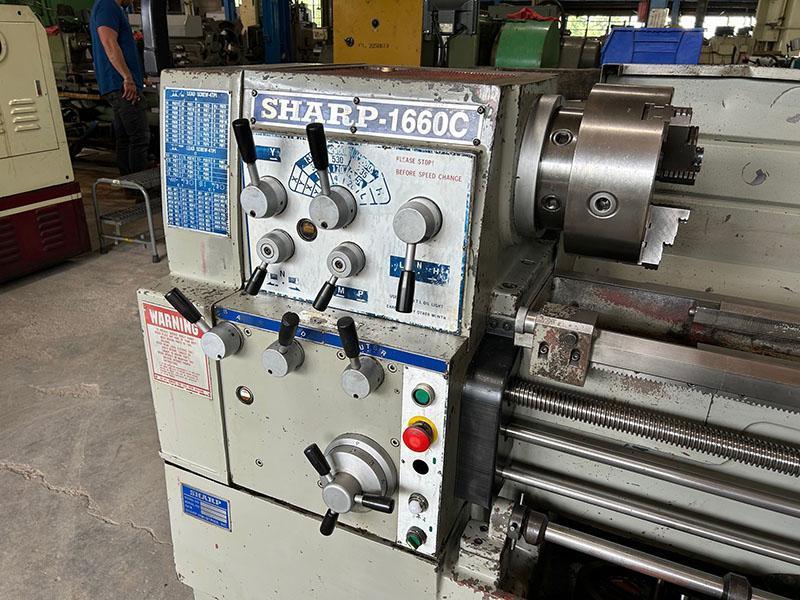

MODEL: 1660C

SPECIFICATIONS:

SWING OVER BEDWAYS ................... 16"

SWING IN REMOVEABLE GAP .............. 24-3/8"

SWING OVER CROSS SLIDE ............... 8-3/4"

HOLE THRU SPINDLE .................... 2-1/8"

DISTANCE BETWEEN CENTERS ............. 60"

SPINDLE NOSE ......................... D1-6" CAMLOCK

SPINDLE SPEED RANGE (12) ............. 20 - 2000 RPM

ENGLISH THREADING RANGE .............. 4 - 56 TPI

METRIC THREADING RANGE .............. .5 - 7 mm

LONGITUDINAL FEED RANGE ............. .002" - .032" IPR

CROSS FEED RANGE .................... .001" - .0094" IPR

TAILSTOCK SPINDLE TAPER .............. #4MT

TAILSTOCK SPINDLE TRAVEL ............. 5"

APPROX FLOOR SPACE ................... 105"L x 30"W x 48"H

APPROX WEIGHT ........................ 3,750 LBS

EQUIPPED WITH:

ACU-RITE TWO AXIS DIGITAL READOUT

3-JAW CHUCK

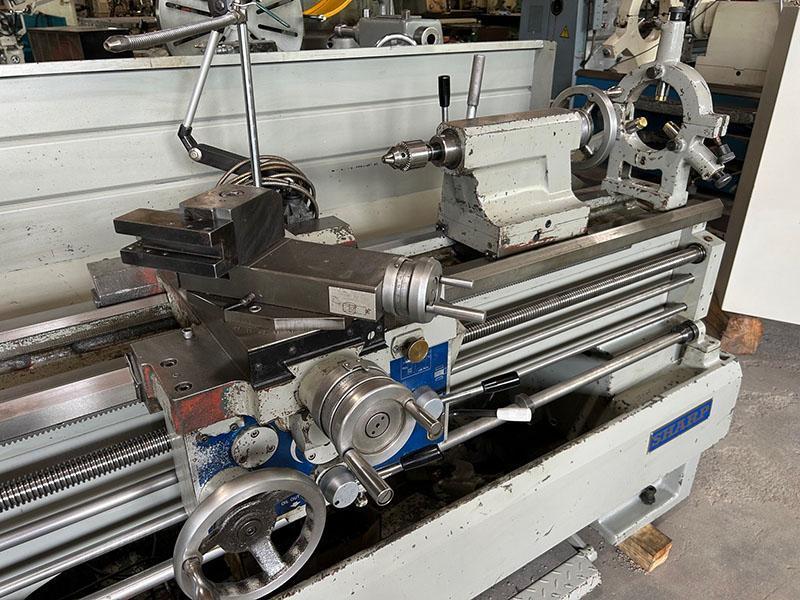

KDK QUICK CHANGE TOOLPOST WITH HOLDERS

STEADY REST

FOLLOW REST

DRILL CHUCK

MICROMETER CARRIAGE STOP

FOOT BRAKE

COOLANT SYSTEM WITH REMOVABLE CHIP PAN

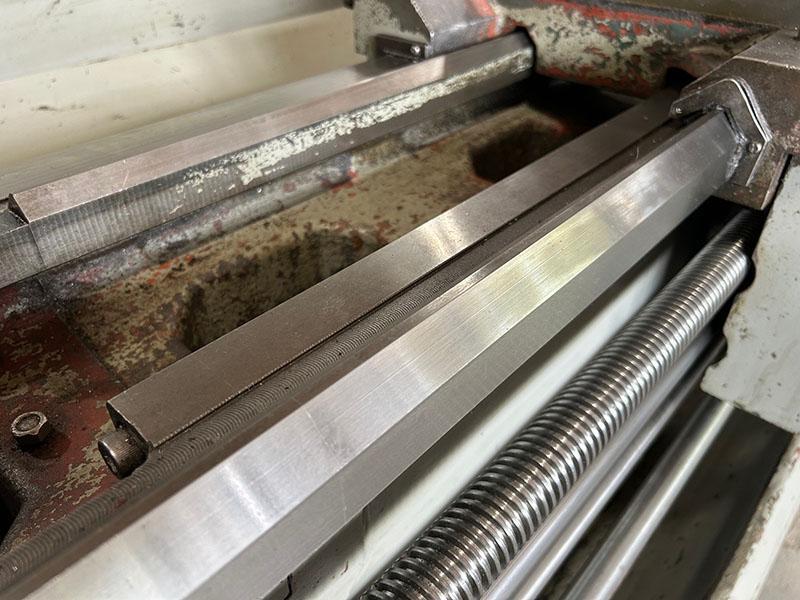

HARDENED BED WAYS

7.5 HORSE-POWER MAIN MOTOR

FOB: ORIGIN
