40 TON STRIPPIT HYDRAULIC SINGLE END PUNCH FABRICATOR MODEL 30/40 HD

Stock#: 4951

Request A Quote

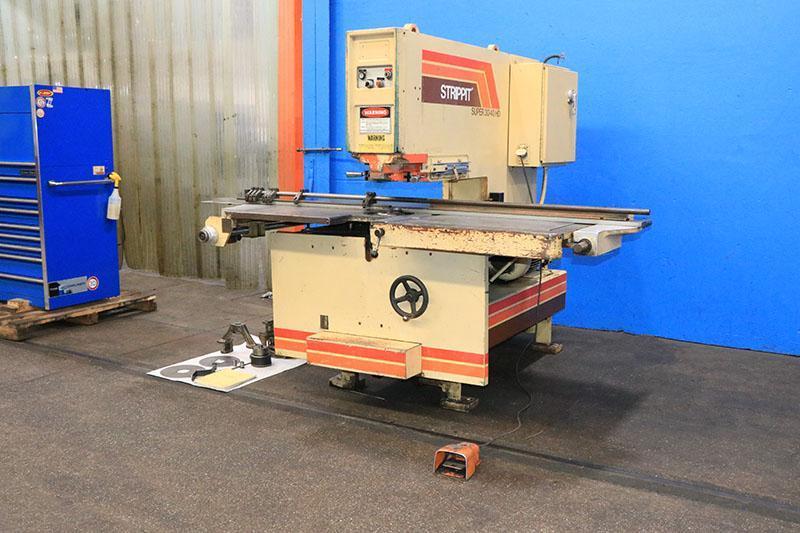

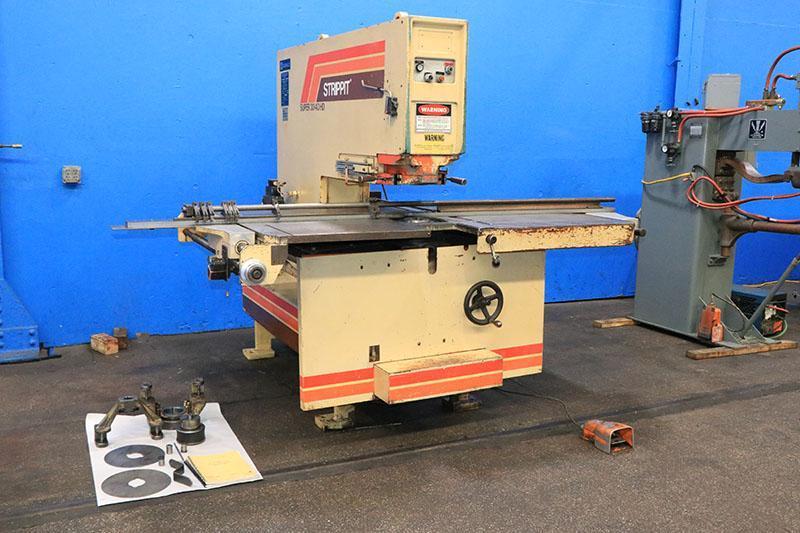

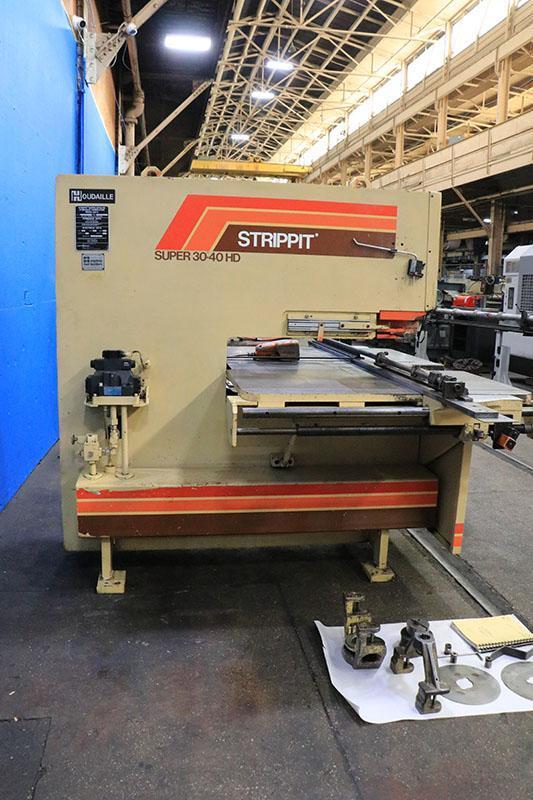

40 TON STRIPPIT HYDRAULIC SINGLE END PUNCH FABRICATOR

MODEL 30/40 HD
NEW 1980

Specifications:

TABLE SIZE ................... 48" X 72"

USABLE THROAT DEPTH .......... 30"

STROKE ....................... 5/8"

STROKES PER MINUTE ........... 120

MAXIMUM HOLE DIAMETER ........ 5" DIA. IN 12 GA.

1-1/4" DIA. IN 3/8"

MAXIMUM SHEET SIZE ........... 30" X 72"

OVERALL DIMENSIONS ........... 96" X 96" X 78" H

APPROXIMATE WEIGHT ........... 9,900 LBS

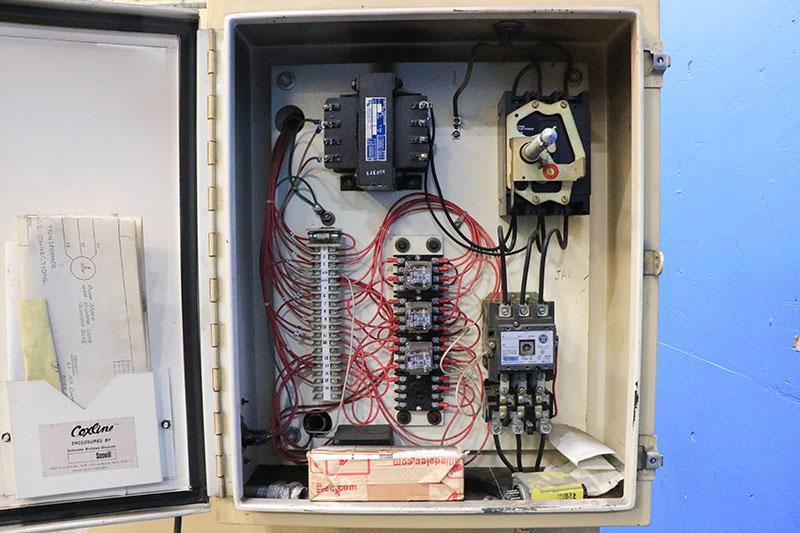

ELECTRICS .................... 10 HP 230/460 / 3 / 60

EQUIPPED WITH:

- FOOT PEDAL

- 2 DIE HOLDERS

- MISC. FINGERS (AS SHOWN)

FOB: Origin
