8' x 1/4" FASTI UNIVERSAL CNC FOLDING MACHINE MODEL 212-25-6
Stock#: 4987
Category Folding Machines
Request A Quote

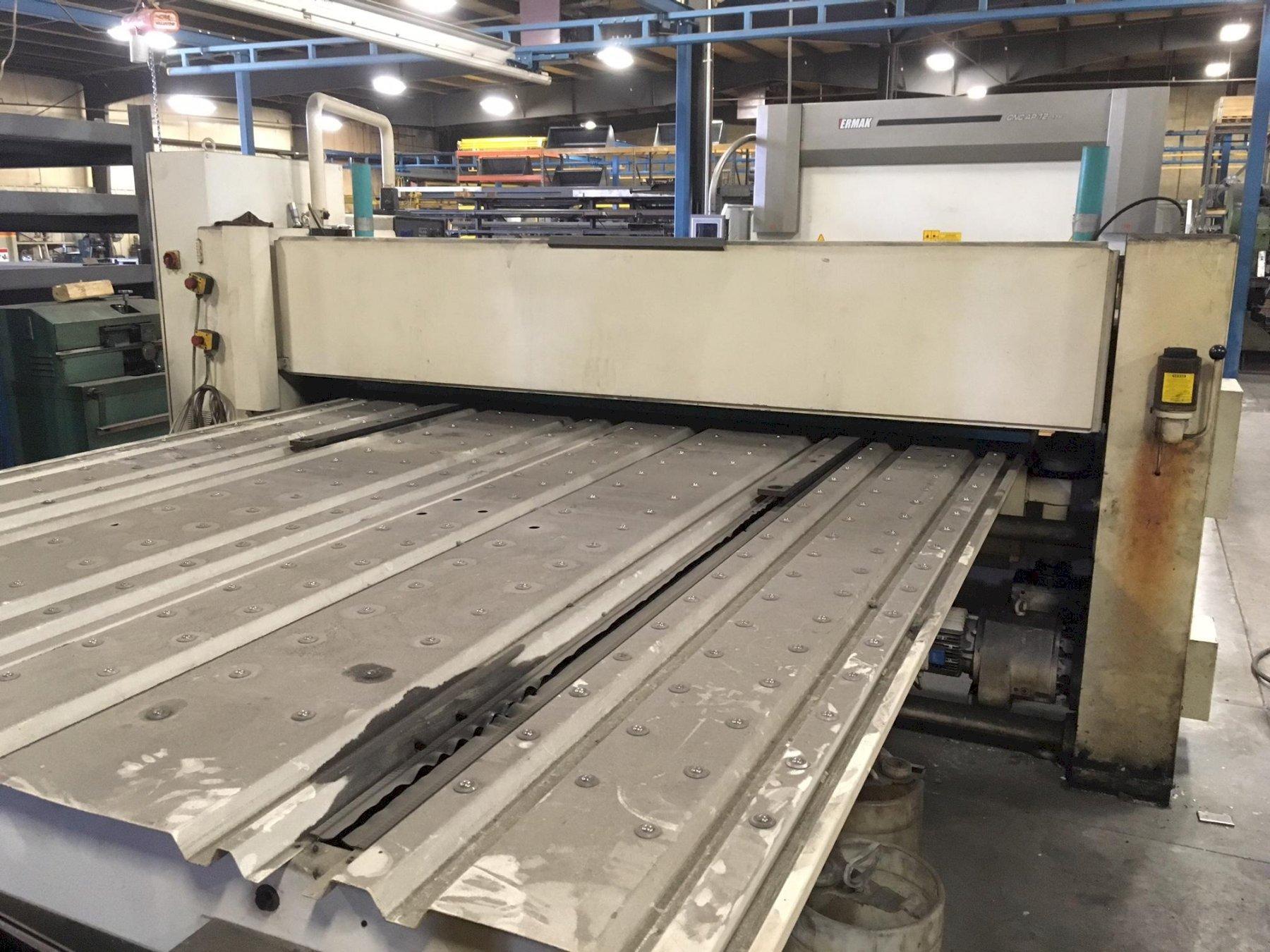

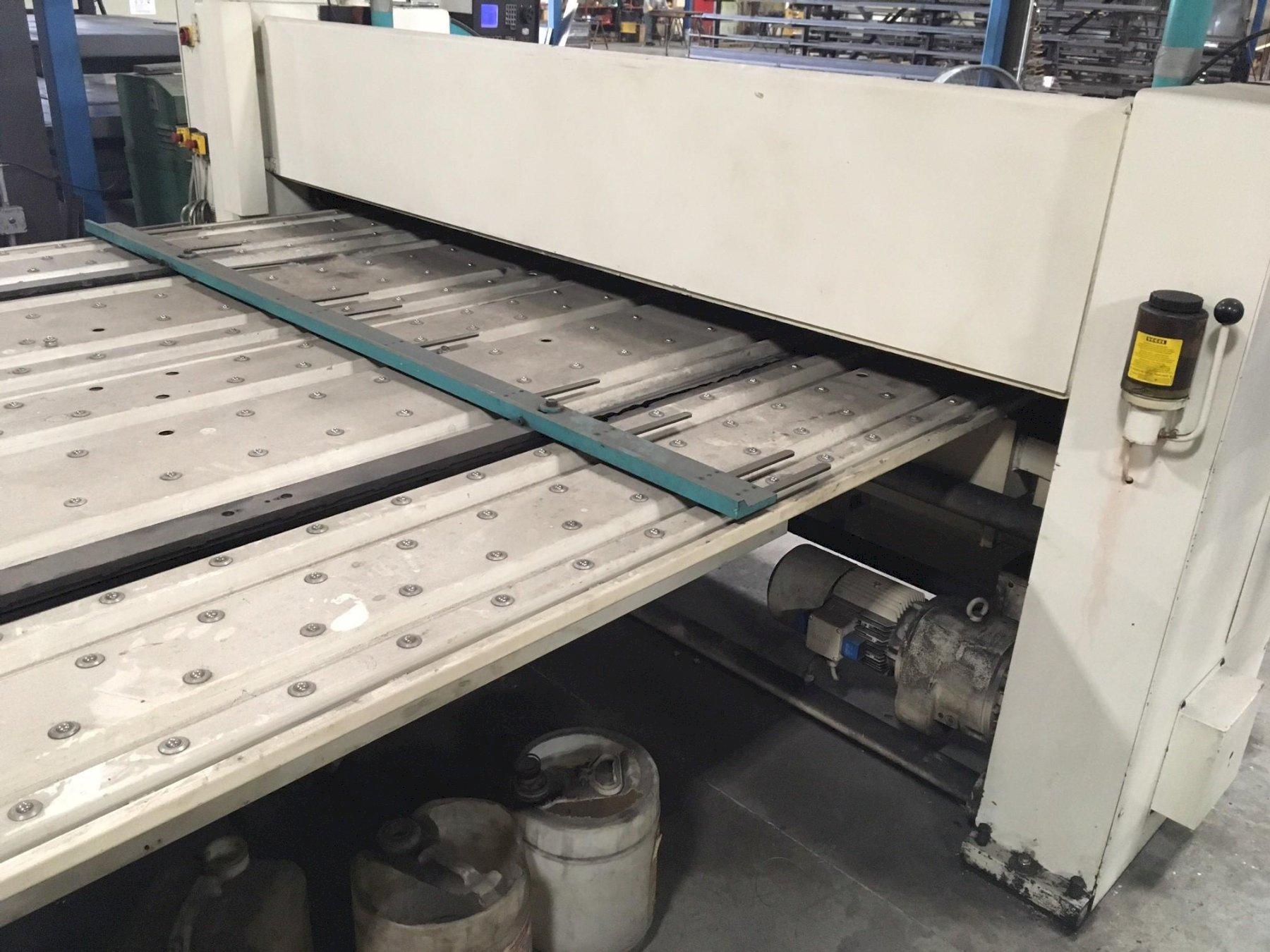

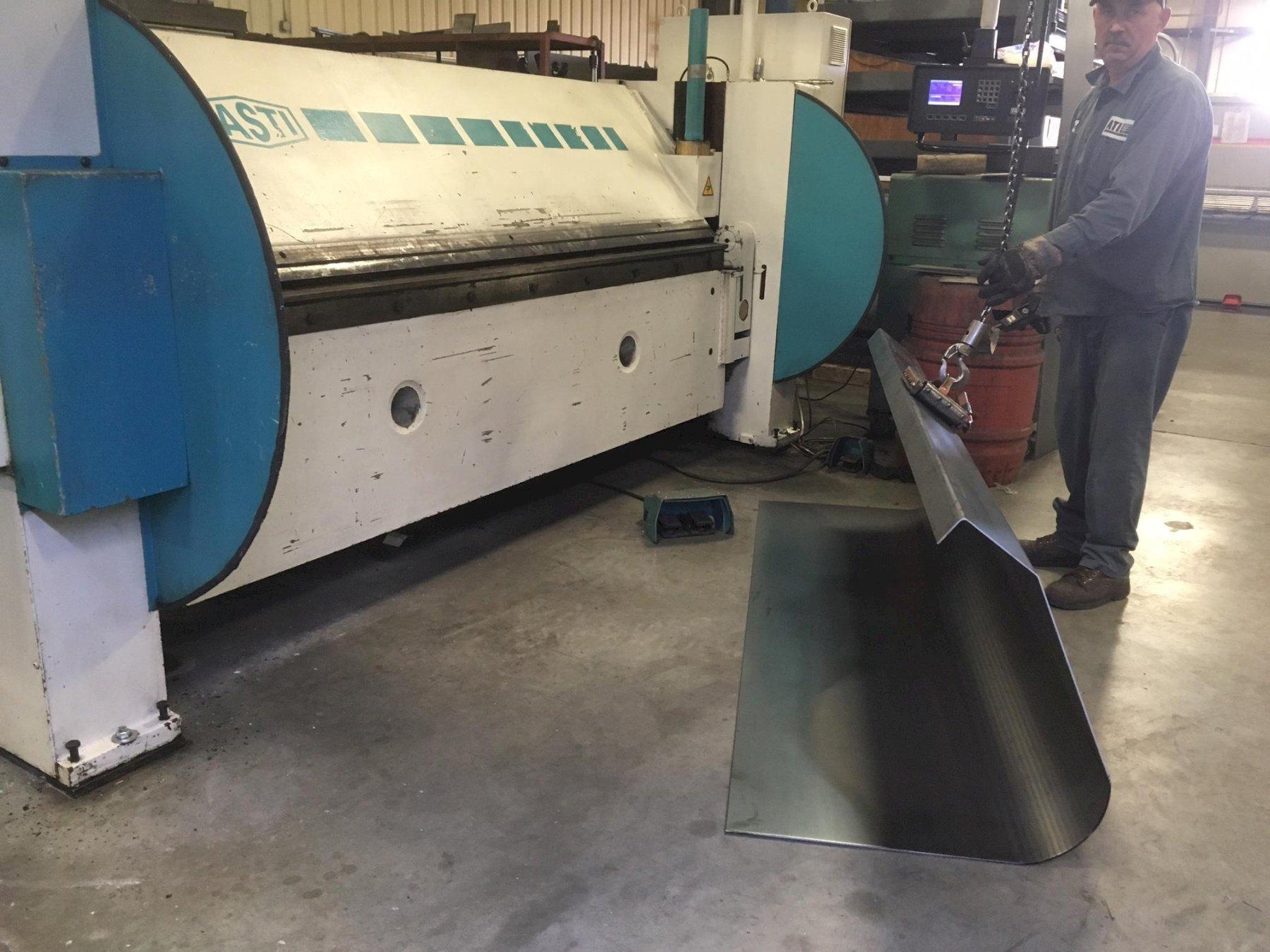

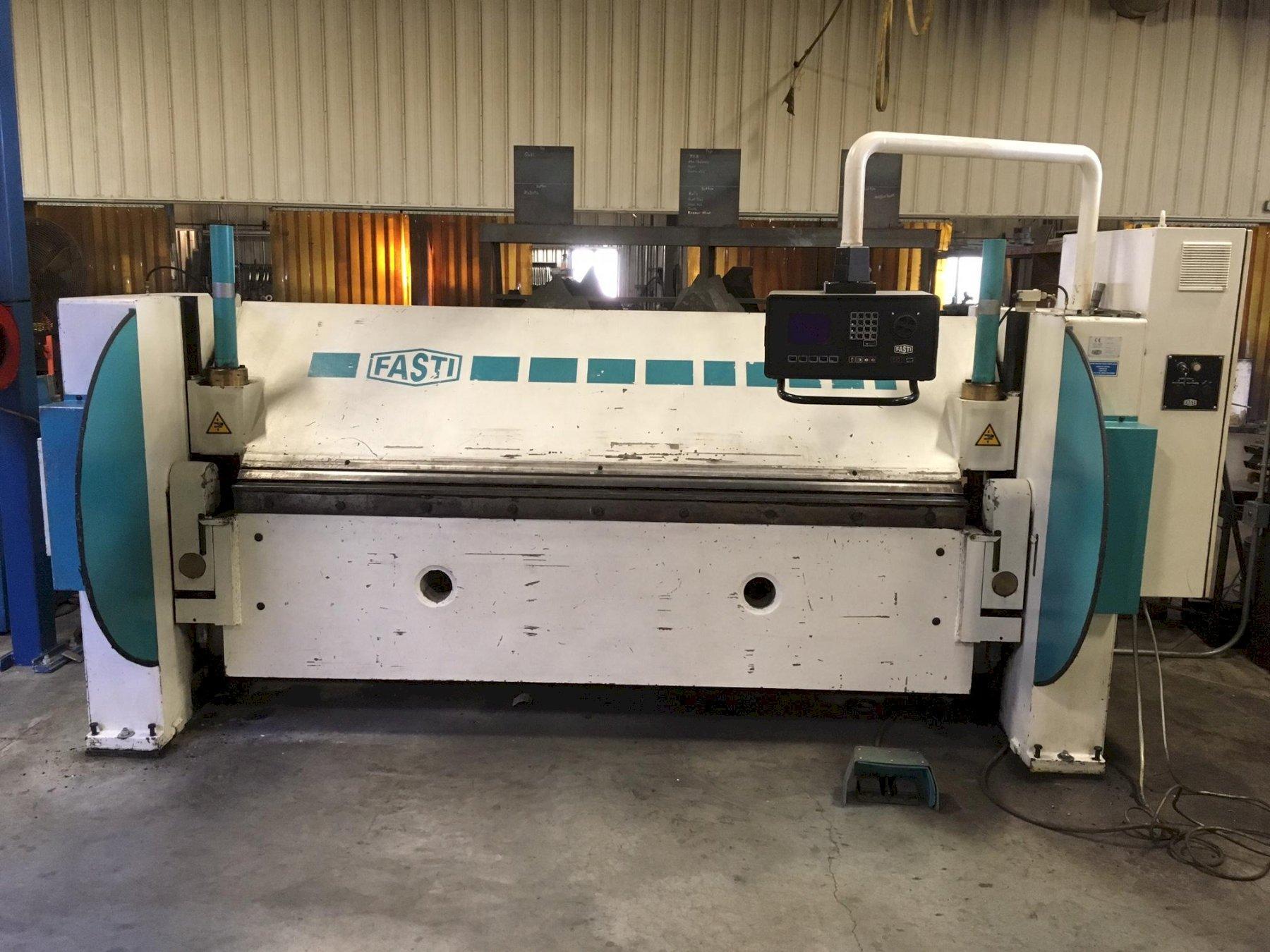

8' x 1/4" FASTI UNIVERSAL CNC FOLDING MACHINE
MODEL 212-25-6
NEW 1999
NEW 1999
SPECIFICATIONS:
WORKING LENGTH .................... 100"
MAX SHEET THICKNESS ............... .236
CLAMPING BEAM STROKE .............. 13.77"
ANGLE ADJUSTMENT ........................... 0-180 Degrees
ANGLE ADJUSTMENT ........................... 0-180 Degrees
LOWER BEAM ADJUSTMENT ............. 3.15"
FOLDING BEAM ADJUSTMENT ........... 3.15"
MAXIMUM CLAMPING BEAM SPEED ....... .71"/sec.
MAXIMUM FOLDING BEAM SPEED ........ 22 deg./sec.
DRIVE MOTOR OUTPUT ................ 13.5 HP
WEIGHT: 13,800 lbs.
FEATURES:
WELDED ALL-STEEL CONSTRUCTION
LOW-MAINTENANCE DESIGN
OPTIMAL PROFILE OF CLAMPING BEAM (45 DEGREES)
TWO-SIDED CLAMPING BEAM DRIVE, RACK AND PINION
TWO-SIDED CLAMPING BEAM DRIVE AND MEASUREMENT
NO SHIMMNG REQUIRED FOR OFF-CENTER LOADS
PATH MEASURING ON CLAMPING BEAM
OVERLOAD PROTECTION
FREE PASSAGE CUT-OUTS ON BOTH SIDES OF CLAMPING BEAM
EQUIPPED WITH:
CNC CONTROL

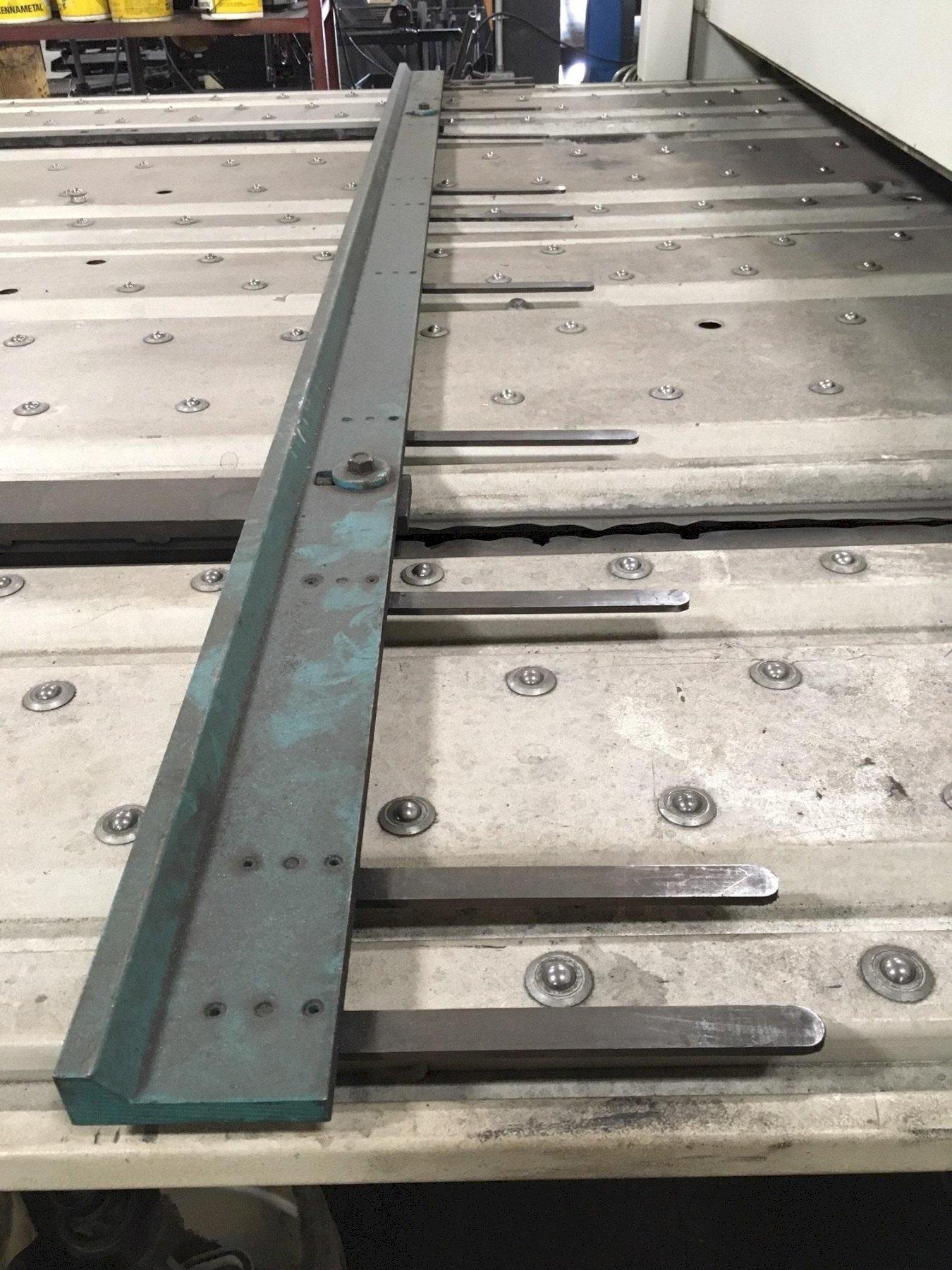

RECTANGULAR SHAPED BACK GAUGE WITH .250" TO 78.75" and 39.6" to 118"
FEATURES:
WELDED ALL-STEEL CONSTRUCTION
LOW-MAINTENANCE DESIGN
OPTIMAL PROFILE OF CLAMPING BEAM (45 DEGREES)
TWO-SIDED CLAMPING BEAM DRIVE, RACK AND PINION
TWO-SIDED CLAMPING BEAM DRIVE AND MEASUREMENT
NO SHIMMNG REQUIRED FOR OFF-CENTER LOADS
PATH MEASURING ON CLAMPING BEAM
OVERLOAD PROTECTION
FREE PASSAGE CUT-OUTS ON BOTH SIDES OF CLAMPING BEAM
EQUIPPED WITH:
CNC CONTROL
RECTANGULAR SHAPED BACK GAUGE WITH .250" TO 78.75" and 39.6" to 118"
FOB: ORIGIN
