Betenbender 160 Ton x 12' Hydraulic Press Brake MODEL 12'-160 w/ CNC Back Gauge
Stock#: 4821
Category Brakes, Press
Request A Quote

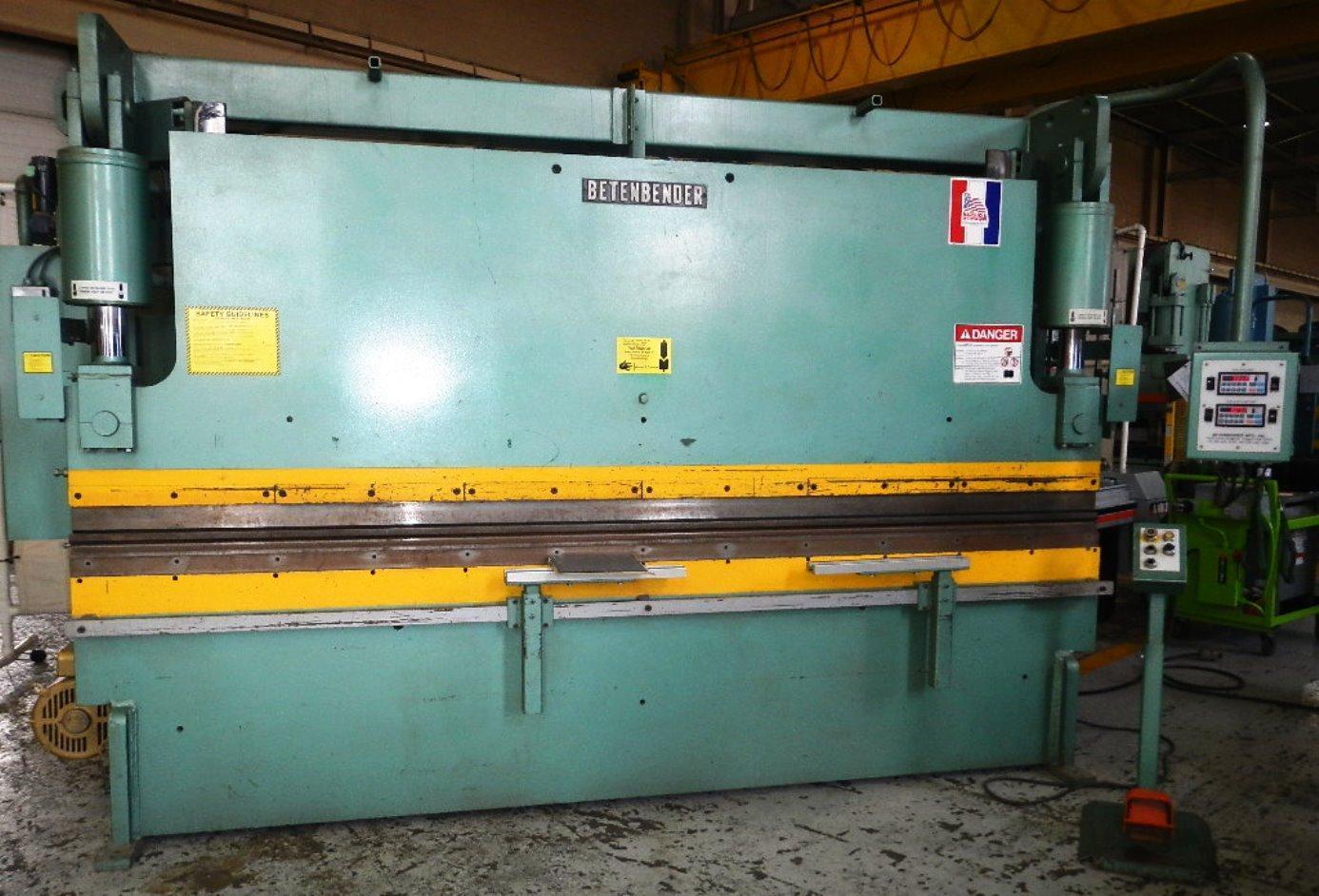

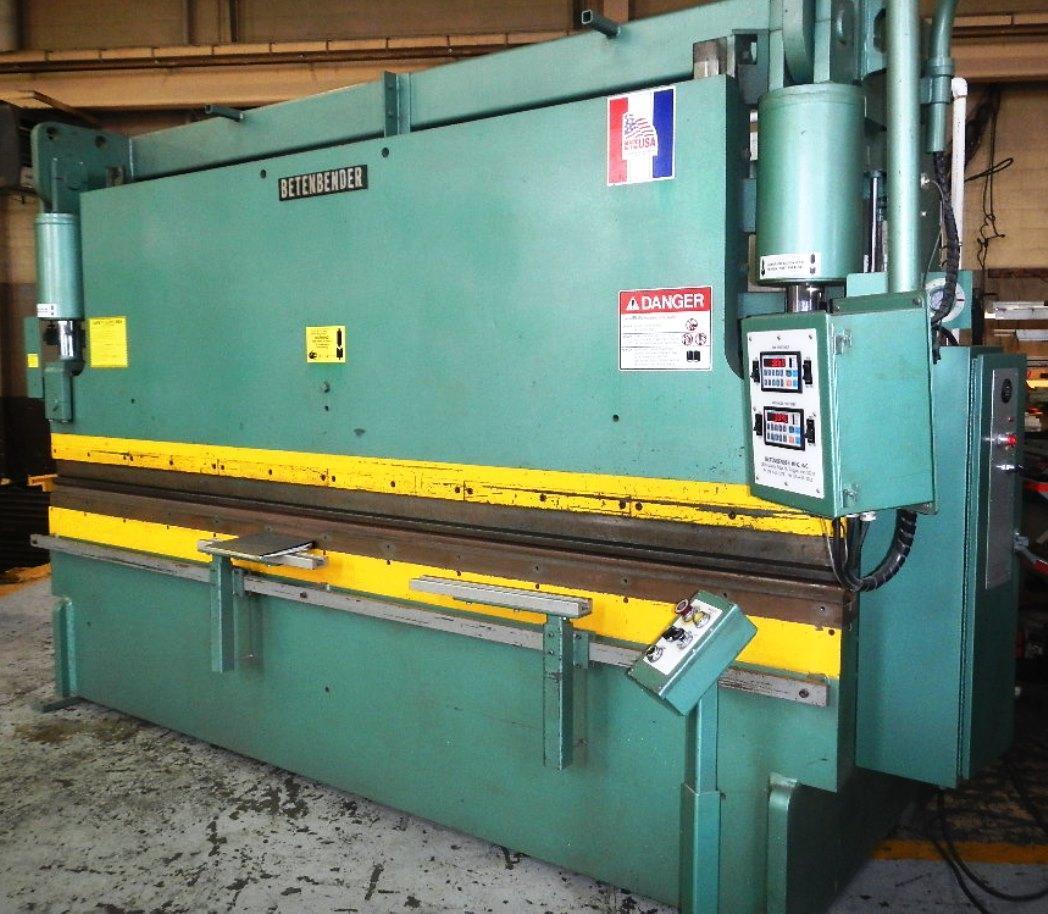

Betenbender 160 Ton x 12' Hydraulic Press Brake

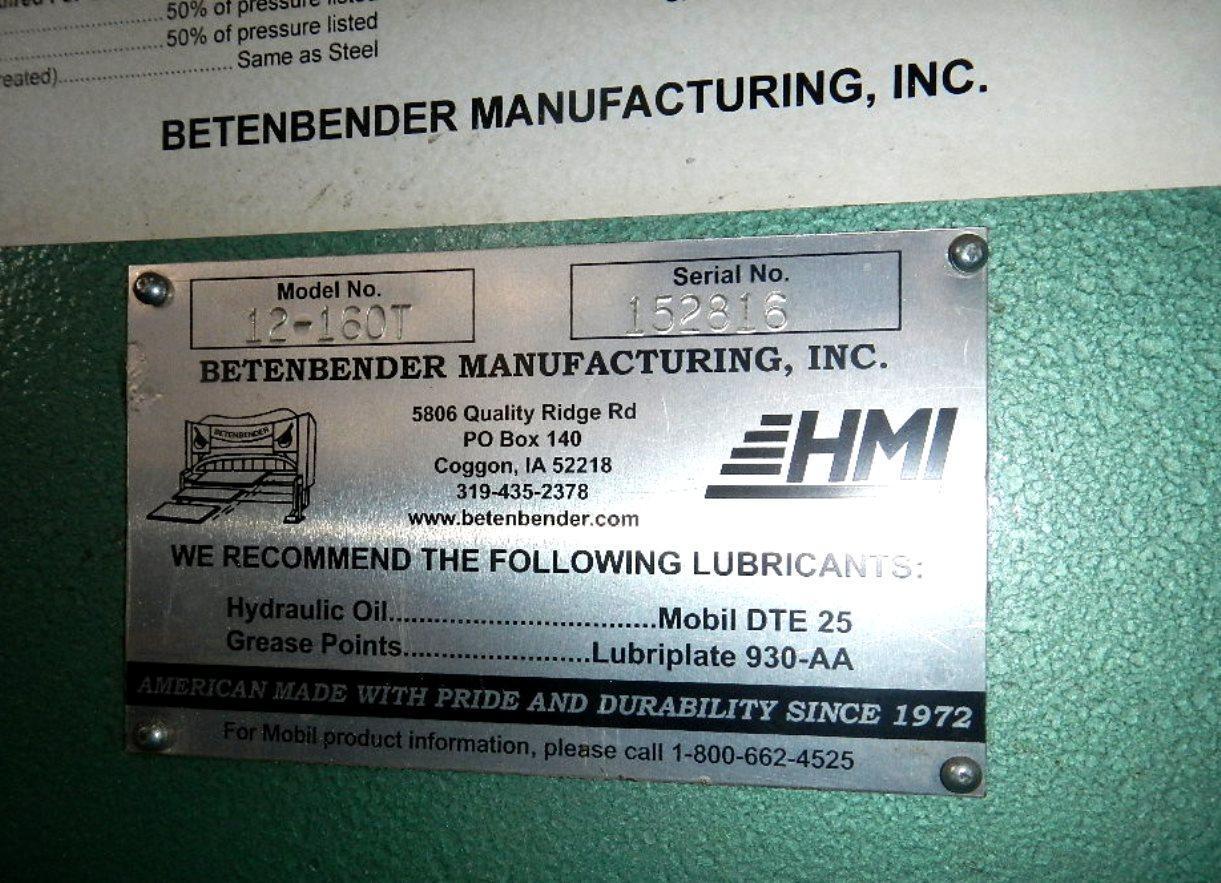

MODEL 12'-160
NEW 2016
NEW 2016
Specifications:
Overall Width ................... 56-1/2"
Throat Depth .................... 8"
Open Height ..................... 12"
Closed Height ................... 6"
Height of Bed ................... 37"
Distance Between Housing ........ 126-1/2"
Width of Upper Ram .............. 3"
Width of Upper End Plates ....... 50"
Press (IPM) ..................... 31"
Rapid Approach (IPM) ............ 68"
Return to Open (IPM) ............ 86"
Width of Bed .................... 5"
Width of Upper Machined Ram ..... 2-3/4"

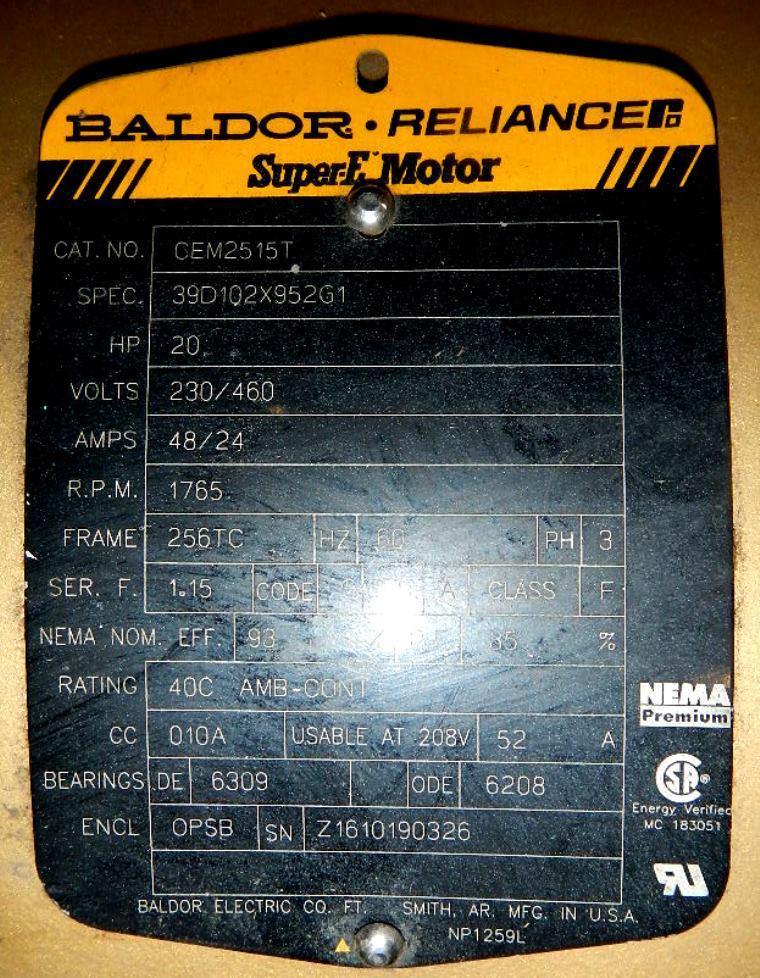

HP .............................. 20
Overall Width ................... 56-1/2"
Overall Length .................. 159"
Overall Height .................. 103"
Weight .......................... 24,000 lbs.(est)
Equipped With:

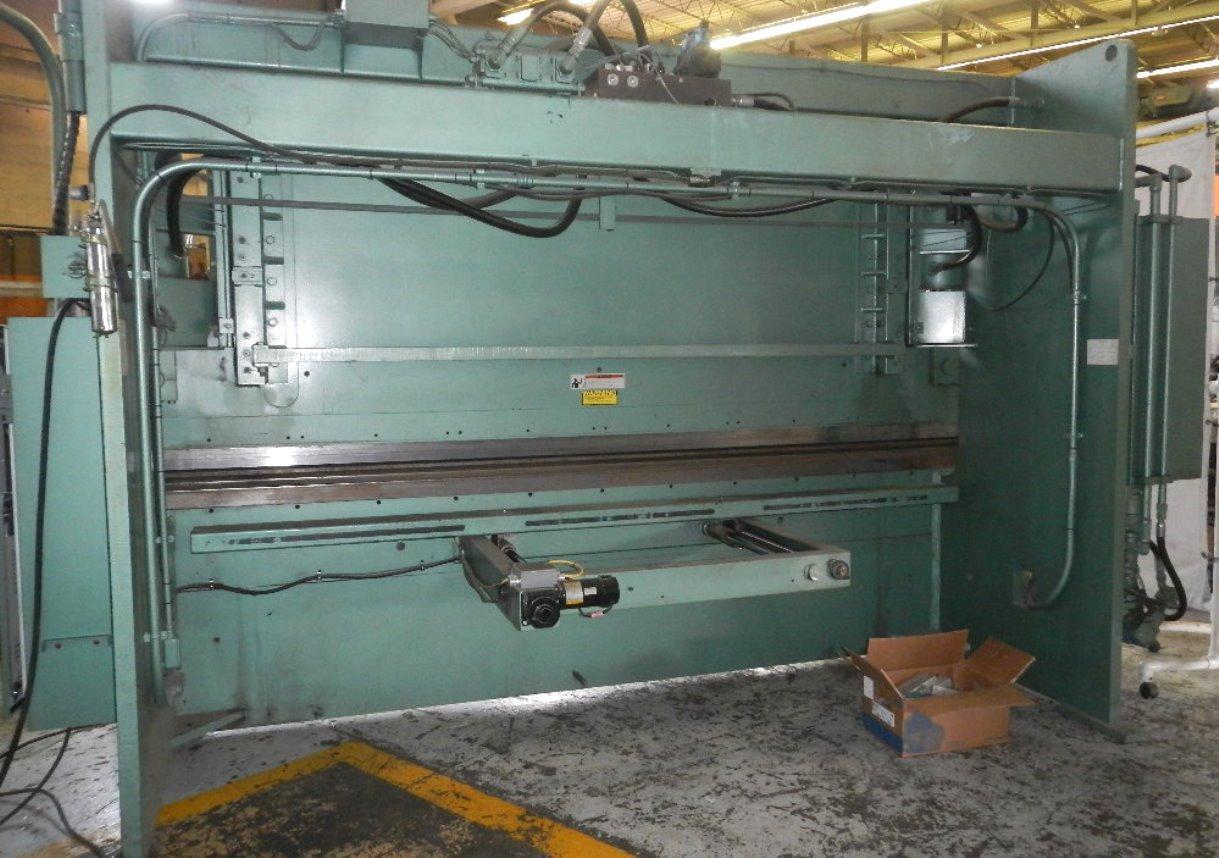

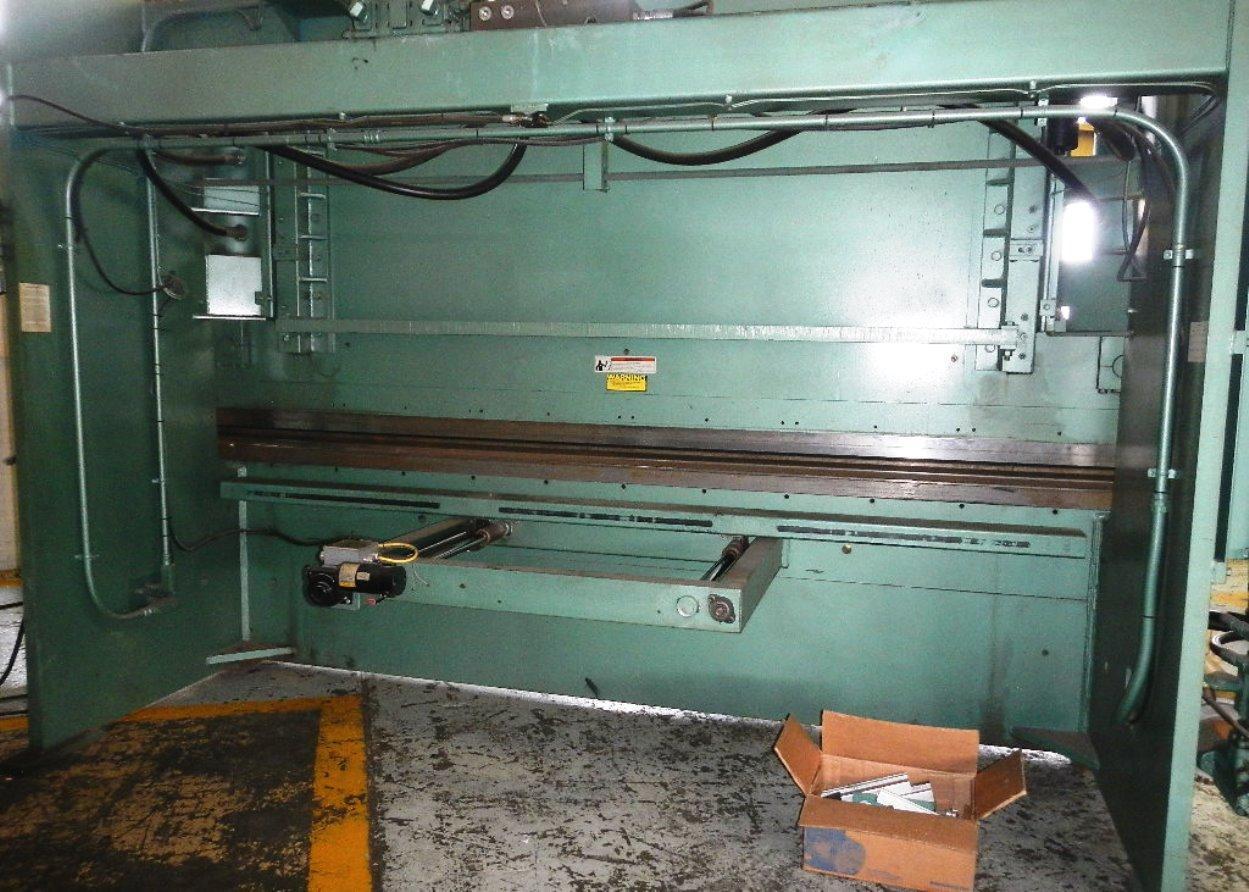

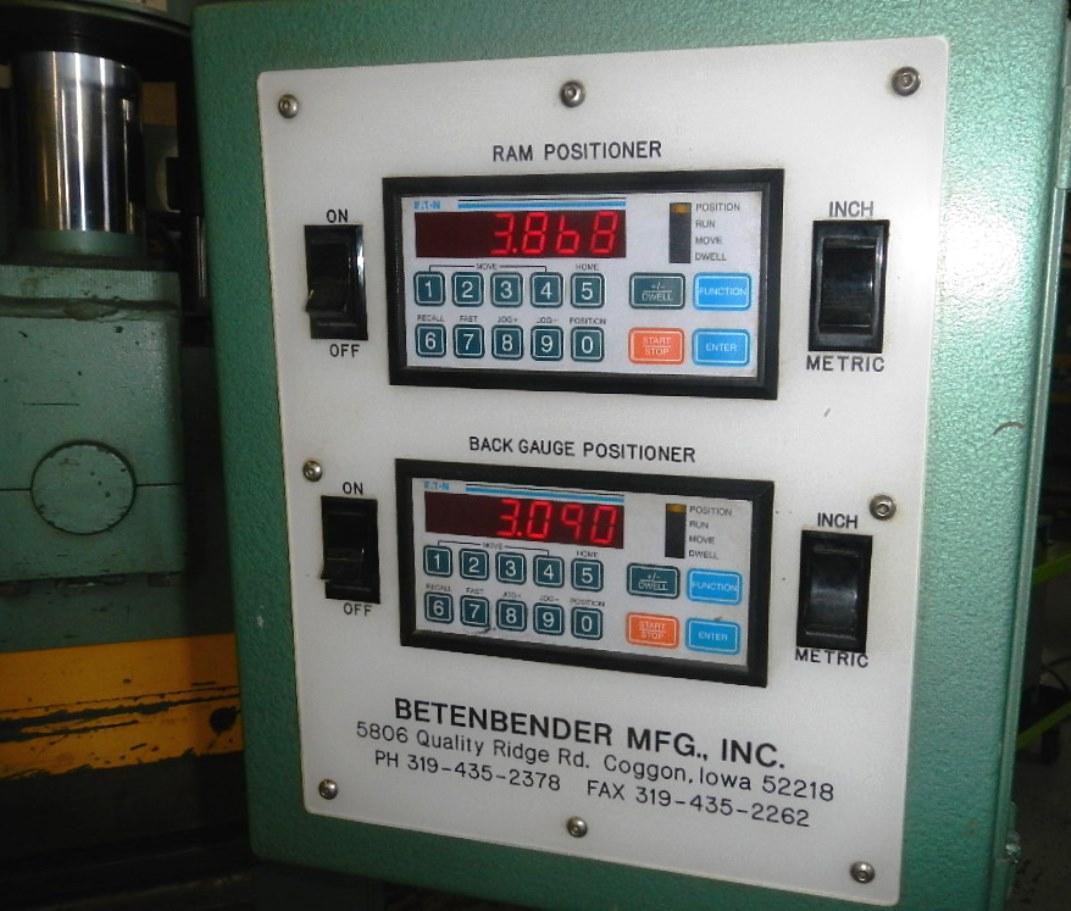

2-Axis Back Gauge Control
2-Speed Electric Shift - Standard
3-Speed Ram (95T-350T models)
NEMA Electrics
Three Position Foot Pedal
Depth Stop with Digital Readout
Bottom Time Delay
Hour Meter
All Hydraulic Fluids Included
American Made Motor and Valves

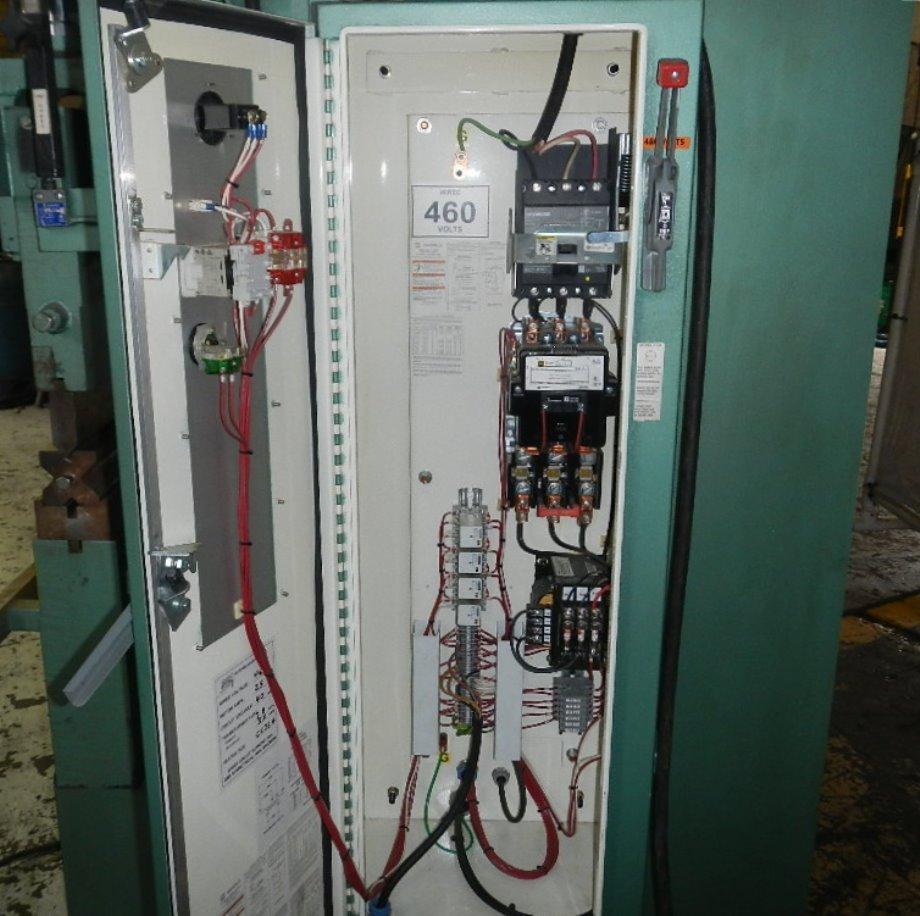

Disconnect Switch
American Made Hoses and Fittings
All Steel Construction
Hydraulic Pressure: 2750 PSI

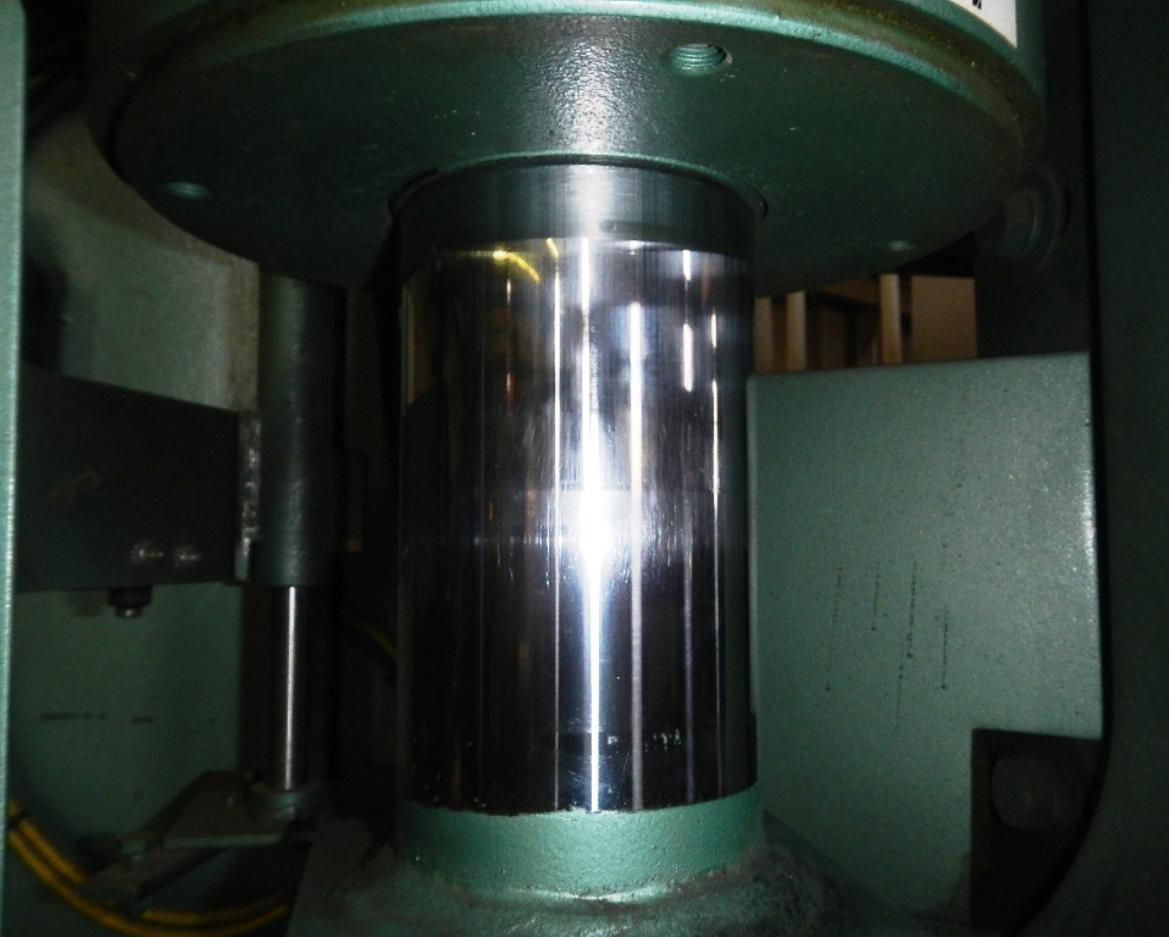

Cylinders are steel, double acting piston type with hardened,
ground and chromed rods
Hardened Pins with Spherical bearings for alignment
Front & Back of Bed Machined Smooth for Mounting of Gauges
Multi-switch control panel (with emergency switch, run-job, and
up-down buttons) and 3-position fully guarded switch
Hand wheel control to .001 for depth of bend adjustment
Ram Tilt Micrometer
Pressure Gauge

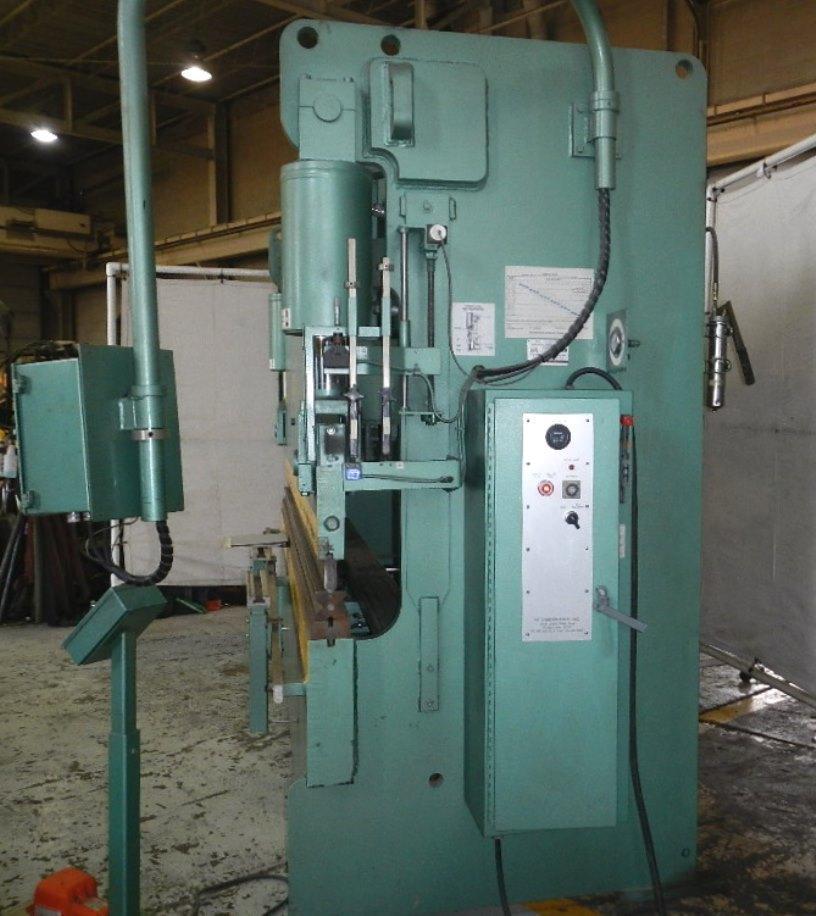

Control Panel
Ram Machined with 1/2" x 3/4" slot.
FOB: Origin
FOB: Origin
