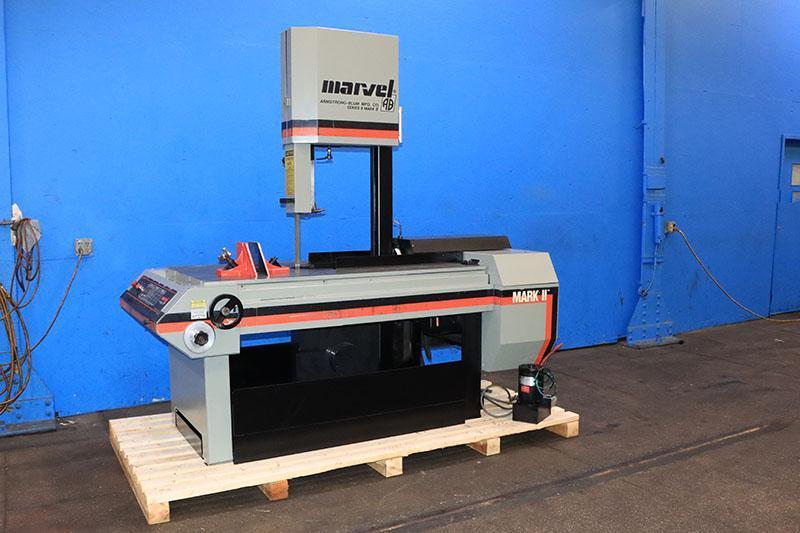

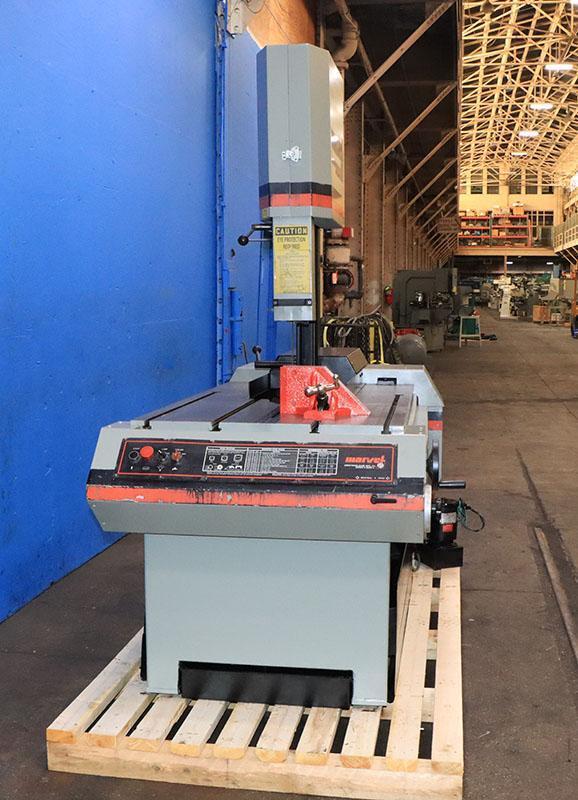

Marvel Tilt Frame Vertical Band Saw, Model Series 8, Mark II
Stock#: 5130
Category Saws, Band, Vertical
Request A Quote
MARVEL VERTICAL BAND SAW
MODEL: SERIES 8, MARK II
1" BLADE
SPECIFICATIONS:
MODEL: SERIES 8, MARK II
1" BLADE
SPECIFICATIONS:
CAPACITY:
NOMINAL .................... 18" x 22"
HORIZONTAL ................. 18"
VERTICAL ................... 22"
BLADE @ 45 deg ............ 18" x 12-3/4"
TABLE WORKING SURFACE .......... 24-1/4" X 33"
TABLE HEIGHT ................... 34-1/2"
TEE SLOTS NUMBER ............... 4
MAX VISE OPENING ............... 21"
HEIGHT OF VISE JAWS ............ 6"

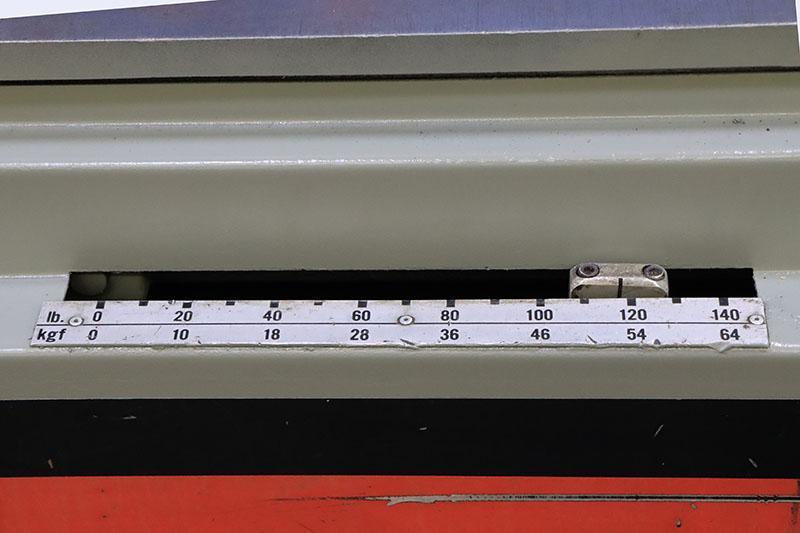

FEED RANGE ..................... 0 - 140 LBS
VARIABLE SPEED RANGE ........... 50 - 450 FPM
BLADE SIZE ..................... 14'6" x 1" x .035" THICK
BLADE WHEEL DIAMETERS .......... 18"
APPROX. MACHINE DIMENSIONS ..... 54-1/2"W x 90"D x 84-1/2"H
APPROX WEIGHT .................. 2,870 LBS
EQUIPPED WITH:
- WORK VISE
- COOLANT PUMP & CHIP PAN
- VARIABLE BLADE SPEED
- 2 HORSE POWER 3/60/208,230,460 VOLT MOTOR AND CONTROLS
(SET FOR 230 VOLT OPERATION)
FOB: ORIGIN
FOB: ORIGIN
