RAMS - 2014 Auxiliary Rollforming Machine - 20 Ga Pittsburgh and 6 in 1 Rolls
Stock#: 4948
Category Roll Formers
Request A Quote

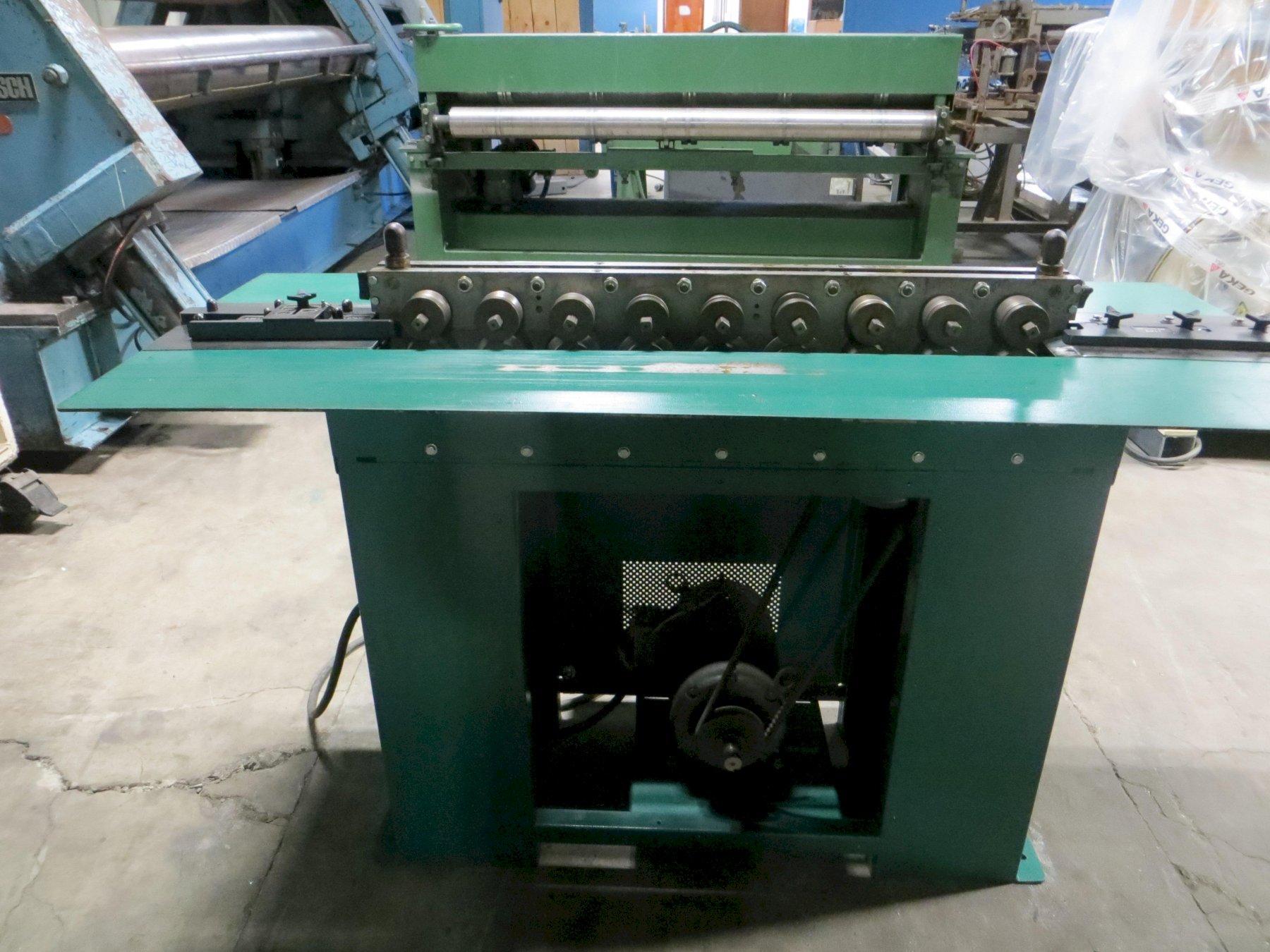

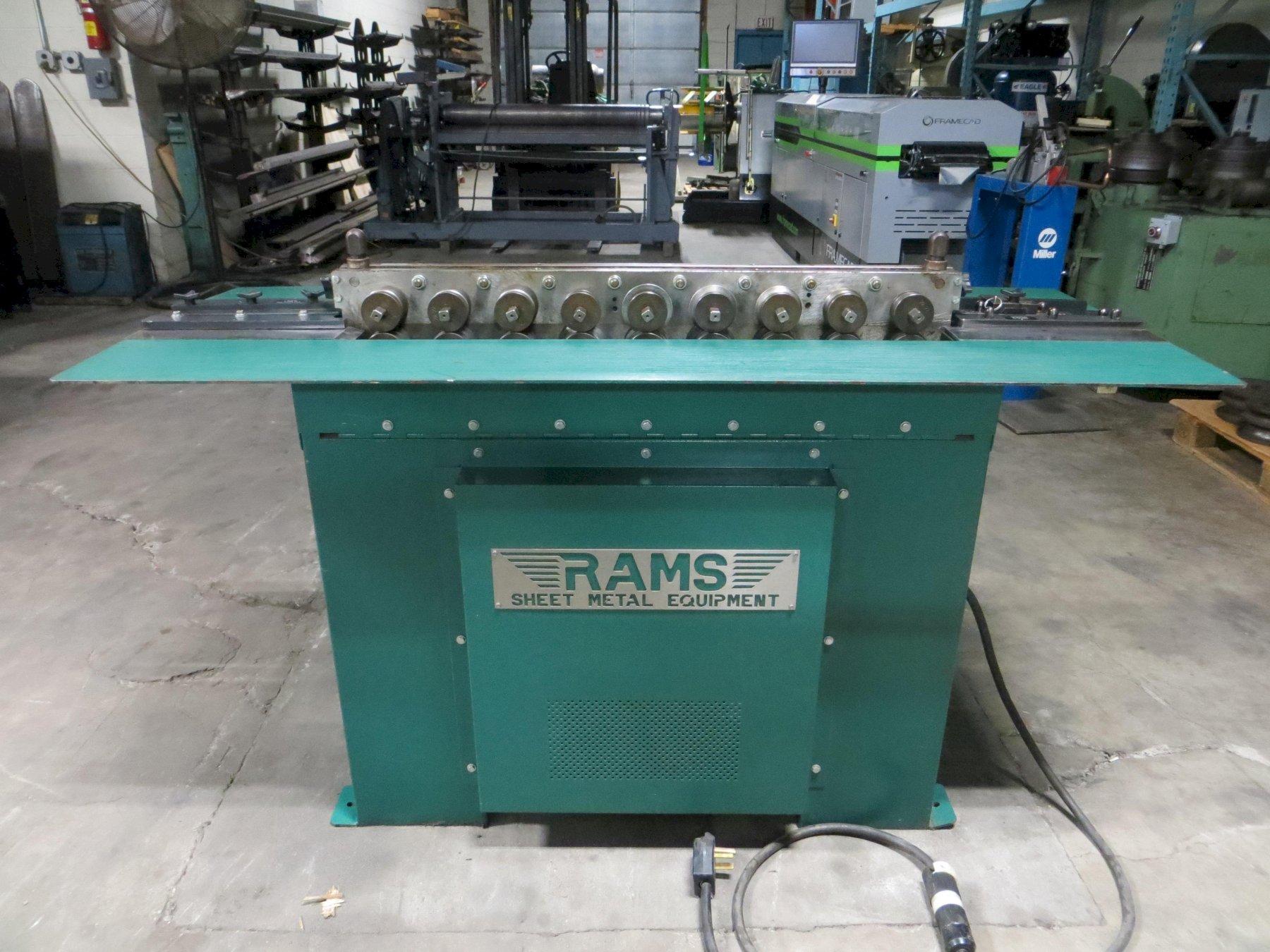

RAMS 2014 Auxiliary Rollforming Machine
Includes:
20 Ga. Pittsburgh

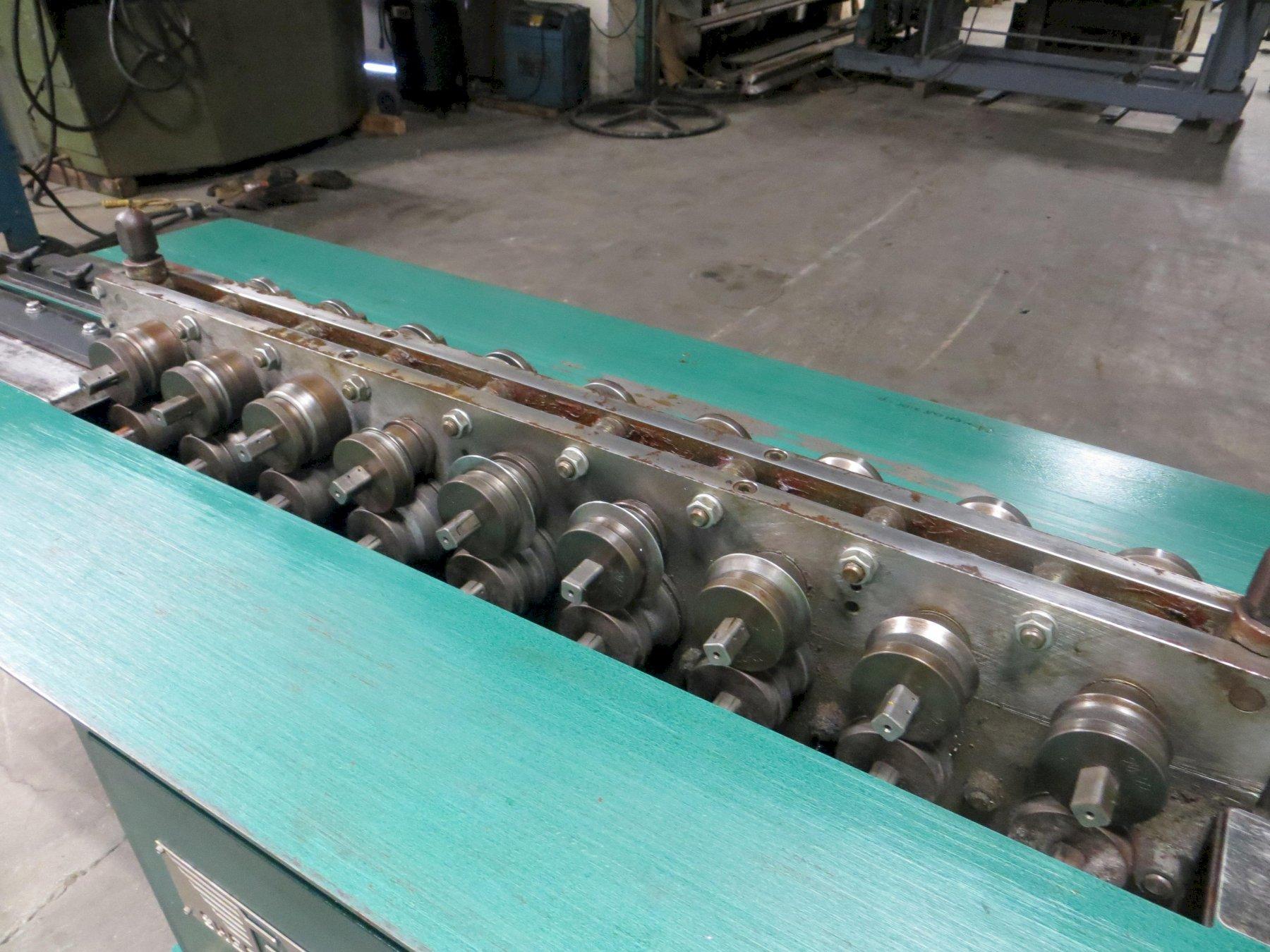

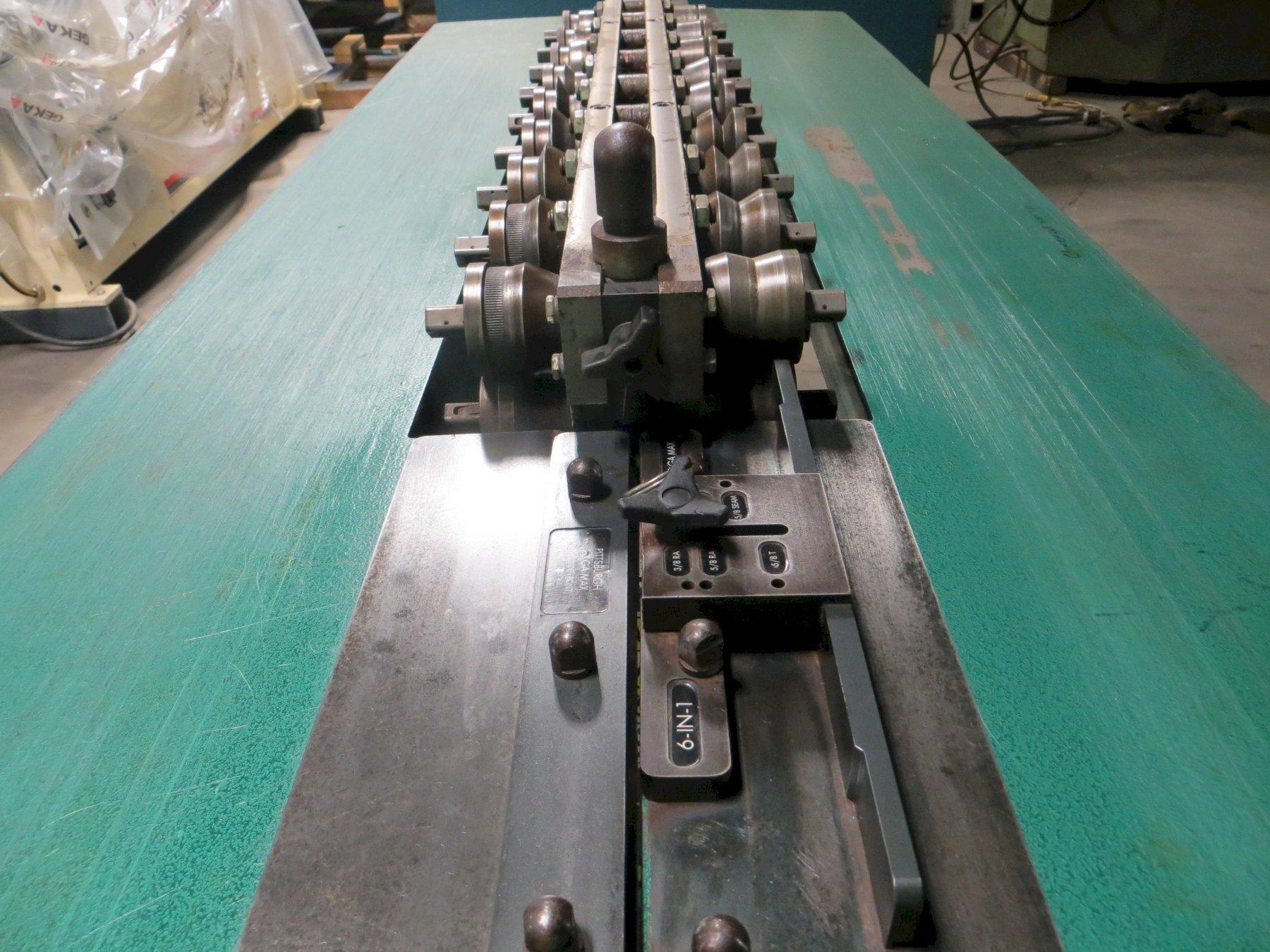

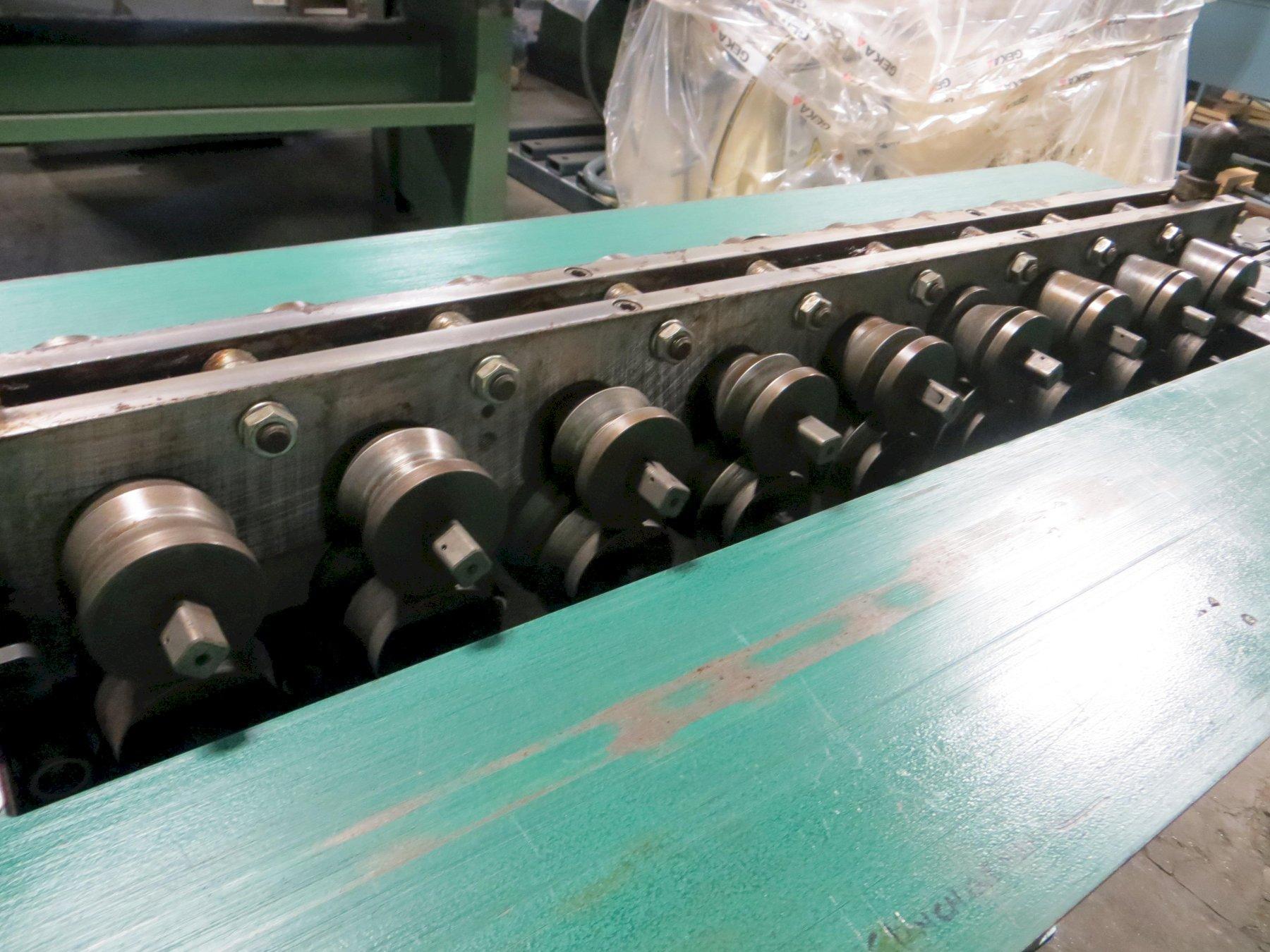

6 in 1 Rolls (1/4", 3/8", 1/2", and 5/8" Right Angle Flange), 5/8" Standing Seam, and 5/8" T-Connect
Specifications:
Capacity: 20 Ga. to 26 Ga.
Approx. Speed: 40 FPM
Dimensions: 63" x 26" x 34" (l x w x h)
Approx. Weight: 600 lbs.
NOTE: NO COVER
The RAMS 2014 Auxiliary Machine is like no other machine available on the market today. Features a 5 HP motor 208-230V single phase. It was designed specifically for ease of use, flexibility and the convenience of the end user.
Key features include: hinged table top and square drive shafts which allows easy access to change out a complete roll set in less than five minutes, quick change tooling which requires no keys or tools, and quick jam clearing. This machine can convert from a button lock to an Acme & Drive Cleat machine instantly.
